LED Anchor Lights on this webpage (FREE
SHIPPING OVER $100*):
2NM Tri-Color Anchor Lights with Optional Photodiode and/or Strobe Orca Green Marine
2NM LED Tri-Color Anchor Light with Wind Indicator Illumination (2-Wire Installation) Signal Mate
2NM LED Tri-Color Anchor Light with Wind Indicator Illumination (3-Wire Installation) Signal Mate
2NM All-Around White LED Anchor Light with Optional Strobe & Photodiode Orca Green Marine
3NM All-Around White LED Anchor Lights with Optional Photodiode Signal Mate
For more information regarding LED Lighting
|

Click for larger image
Orca Green Marine
|
2NM TRI-COLOR ANCHOR LIGHTS BY ORCA GREEN
MARINE Waterproof LED Tri-Color Anchor Lights with
optional Photodiode and/or Strobe have quick disconnect plug with
mating cable. Five times less power than comparable incandescent Tri-Color
lights! Two (2) nautical miles visibility for vessels up to 65 feet
(20 meters). US Coast Guard Approved. For Mounting Bracket and other
accessories please visit LED
Light Accessories.
Made in USA.
Select between Model Types in Pull-Down Menu below:
LED Tri-Color Anchor Light (No Options - $419.95)
LED Tri-Color Anchor Light with Photodiode (Photodiode
- $429.95)
LED Tri-Color Anchor Light with Strobe (Strobe
- $429.95)
LED Tri-Color Anchor Light with Photodiode & Strobe (Photodiode
& Strobe
- $439.95)
Visibility: Two (2) Nautical Miles
Vertical Viewing Angle: +/- 36 Degrees
Application: Sailboats Up to 65 Feet (20 Meters)
Voltage Range: 10 to 28VDC
Current Draw: 0.3 Amps at 12VDC
Durability: Waterproof, Submersible
Wiring: 3-Pin Waterproof Quick-Disconnect Plug with 2 Feet Mating
Cable
Warranty: Three (3) Years
Certifications: USCG 2NM, COLREGS '72, ABYC A-16
Bottom
Diagram
Optional Photodiode: Turns Anchor Off at Daylight, On
at Dusk Automatically
Optional Strobe: LEDs Flash Once Per Second - 60 Strobes
@ Minute
|

Click for larger image
Signal Mate (Misea Group)
|

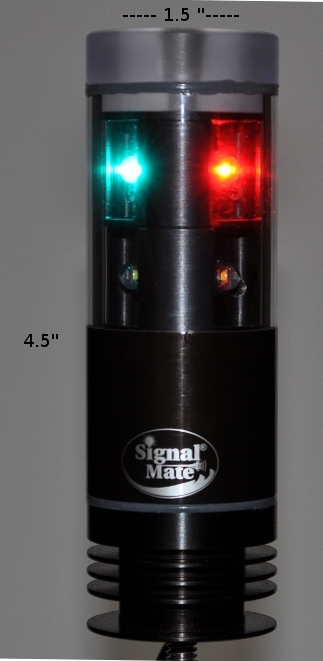

2NM LED TRI-COLOR ANCHOR LIGHT WITH WIND
INDICATOR ILLUMINATION (2-WIRE INSTALLATION) BY SIGNAL MATE
The LED Tri-Color with Anchor Light has a clear window on top of
the light that allows the stern light to shine up-ward to illuminate
the wind vane for night sailing. Two (2) wire installation.
You will need to use a reversing switch for the 2 wire installation,
you may wire up your own DPDT (Double Pole Double Throw) switch
or select the reversing switch option.
Visibility: Two (2) Nautical Miles
Vertical Viewing Angle: +/- 36 Degrees
Application: Sailboats up to 65 Feet (20 Meters)
Voltage Range: 10 to 30VDC
Current Draw: 0.3 Amps at 12VDC
Durability: Waterproof, Submersible
Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
Mounting: 1/4 x 20 Female Threads at Bottom
Included: Reversing Switch
Warranty: Three (3) Years
Certifications: USCG 2NM, COLREGS '72, ABYC A-16
Options: Photodiode (Automatically Turns Off at Daylight,
On at Dusk)
|

Click for larger image
Signal Mate (Misea Group)
|
2NM LED TRI-COLOR ANCHOR LIGHT WITH WIND
INDICATOR ILLUMINATION (3-WIRE INSTALLATION) BY SIGNAL MATE
The LED Tri-Color with Anchor Light has a clear window on top of
the light that allows the stern light to shine up-ward to illuminate
the wind vane for night sailing. Three (3) wire installation.
Visibility: Two (2) Nautical Miles
Vertical Viewing Angle: +/- 36 Degrees
Application: Sailboats up to 65 Feet (20 Meters)
Voltage Range: 10 to 30VDC
Current Draw: 0.3 Amps at 12VDC
Durability: Waterproof, Submersible
Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
Mounting: 1/4 x 20 Female Threads at Bottom
Warranty: Three (3) Years
Certifications: USCG 2NM, COLREGS '72, ABYC A-16
Options: Photodiode (Automatically Turns Off at Daylight,
On at Dusk)
|

Click for larger image
Orca Green Marine (Misea Group)
|
ALL-AROUND WHITE LED ANCHOR LIGHT BY
ORCA GREEN MARINE Rugged, waterproof White LED
All-Around Anchor Light with 360° viewable. Two (2) nautical
miles visibility for vessels up to 65 feet (20 meters) in accordance
with United States Coast Guard Approved (used by USCG and other
Military vessels since 2004). Optional Strobe and Photodiode available.
For Mounting Bracket and other accessories please visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Application: Sailboats Up to 65 Feet (20 Meters)
Voltage Range: 8 to 36VDC
Current Draw: 0.2 Amps at 12VDC
Horizontal Viewing Angle: 360 Degrees
Vertical Viewing Angle: +/- 18 Degrees
Durability: Waterproof, Submersible, Designed to Exceed IP67
Warranty: Three (3) Years
Certifications: USCG 2nm, ABYC-A16, COLREGS 72
Options: Strobe and Photodiode (Automatically Turns Off
at Daylight, On at Dusk)
|

Click for larger image
Signal Mate (Misea Group)
|

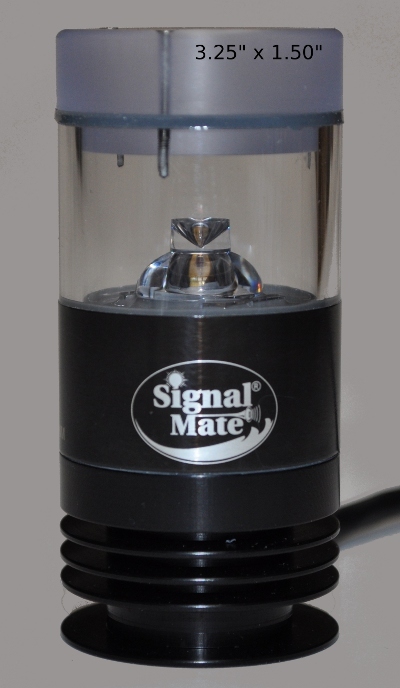

3NM ALL-AROUND WHITE LED ANCHOR LIGHTS
BY SIGNAL MATE The rugged, waterproof All-Around
White LED Anchor Light has a 360° viewable. Three (3) nautical
mile visibility for power and sailboats up to 65 feet (20 meters)
at anchor. US Coast Guard approved (used by USCG and other Military
vessels since 2004). Anchor Light
comes standard with a Clear Top. A clear top all-round light can
be used to illuminate the wind vane to observe wind direction while
at anchor or momentary used to check wind vane under sail. It also
allows the light to be seen by aircraft in emergencies. A clear
top All-Around Anchor Light used with a Signal
Mate Controller allows distress signaling to be seen by aircraft.
Also available with optional photodiode; on at dusk, off at dawn.
For Mounting Bracket and other accessories please visit LED
Light Accessories.
Made in USA.
Visibility: Three (3) Nautical Miles
Application: Sailboats Up to 65 Feet (20 Meters)
Voltage Range: 10 to 30VDC
Current Draw: 0.16 Amps at 12VDC
Horizontal Viewing Angle: 360 Degrees
Vertical Viewing Angle: +/- 18 Degrees
Durability: Waterproof, Submersible, Designed to Exceed IP67
Warranty: Three (3) Years
Certifications: USCG 2nm, ABYC-A16, COLREGS 72
Options: Photodiode (Automatically Turns Off at Daylight,
On at Dusk)
|
|
|
|
