LED Navigation Lights on this webpage (FREE
SHIPPING OVER $100*):
2NM Bi-Color LED Light Signal Mate
2NM Red LED Port Running Light with Mounting Bracket Orca Green Marine
2NM Red LED Port Light Signal Mate
2NM Green LED Starboard Running Light with Mounting Bracket Orca Green Marine
2NM Green LED Starboard Light Signal Mate
2NM White LED Stern Running Light Orca Green Marine
2NM White LED Stern Light Signal Mate
2NM Amber LED Towing Light Orca Green Marine
2NM Amber LED Hovercraft, Dredging, Towing & Double Flashing Lights Signal Mate
For more information regarding LED Lighting
|

Click for larger image
Signal Mate (Misea Group)
|

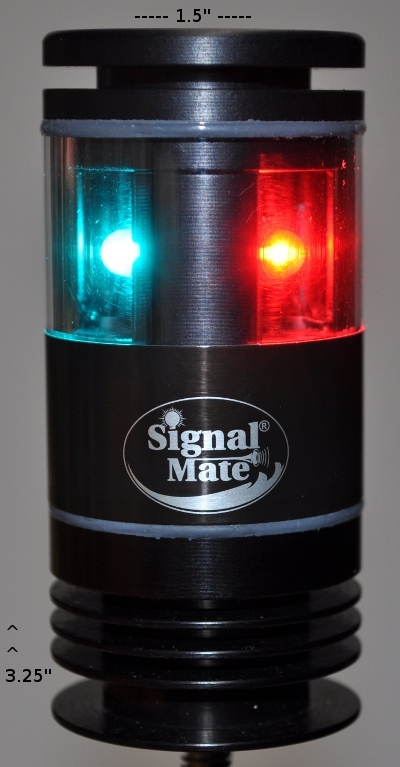

2NM LED BI-COLOR LIGHT BY SIGNAL MATE
The waterproof LED Bi-Color Running Light is a combination port
and starboard navigation light and has a two (2) nautical miles
visibility for power and sailboats up to 65 feet (20 meters). To
view Mounting Brackets and other accessories please visit LED
Light Accessories.
Made in USA.
Visibility:Two (2) Nautical Miles
Light Source: Dual LEDs, 50,000 Hour Full-Brightness Life
Voltage Range: 10-30 VDC
Current Draw: 0.17 Amps @ 12V
Horizontal Viewing Angle: 2 x 112.5 degrees
Vertical Viewing Angle: >70 degrees
Construction: Black Hard Coat Anodized Aluminum, Polycarbonate
Outer Lens
Wiring: 2-Conductor 20- AWG Marine Grade (2.5 Feet Cable Supplied)
Mounting: 1/4 x 20 Female Threads at Top and Bottom for Mounting
Environment: Harsh Marine, Waterproof, Submersible
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Orca Green Marine
|

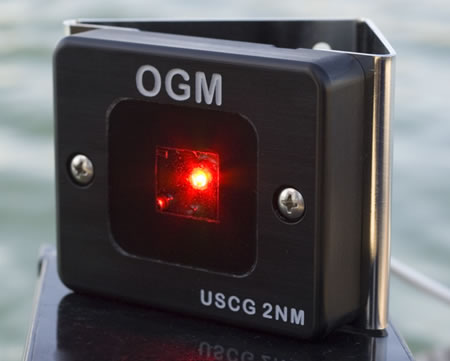

2NM RED LED 112.5° PORT RUNNING LIGHT
WITH MOUNTING BRACKET BY ORCA GREEN MARINE The
Red LED Port Running Light is built for the military, but available
at a reasonable price for any sailor demanding low power, long life
navigation lights. Flat low profile. Has a two (2) nautical miles
visibility for vessels up to 165' (50 meters) in accordance with
US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). Mounting bracket included. To view other accessories
please visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 9-28 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 112.5 Degrees
Vertical Viewing Angle: >70 Degrees
Includes: Stainless Steel Mounting Bracket
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Signal Mate (Misea Group)
|

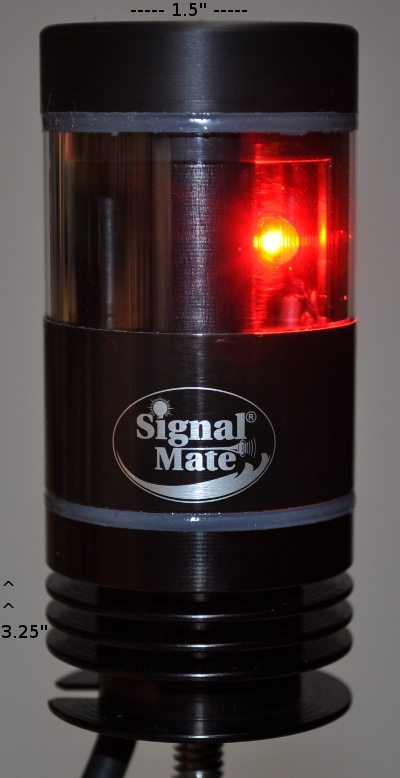

2NM RED LED 112.5° PORT LIGHT BY
SIGNAL MATE The rugged, water tight LED Red Port
112.5° Light has a two (2) nautical miles visibility for vessels
up to 165' (50 meters) in accordance with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). To view Adjustable Mounting Bracket and other accessories
please visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 9-28 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 112.5 Degrees
Vertical Viewing Angle: >70 Degrees
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Orca Green Marine
|

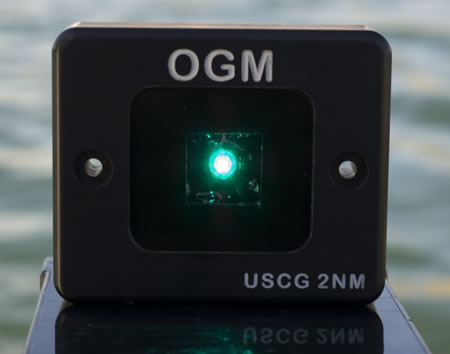

2NM GREEN LED 112.5° STARBOARD RUNNING
LIGHT WITH MOUNTING BRACKET BY ORCA GREEN MARINE
This LED Green Starboard Running Light is built for the military,
but available at a reasonable price for any sailor demanding low
power, long life navigation lights. Flat low profile. Has a two
(2) nautical miles visibility for vessels up to 165' (50 meters)
in accordance with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). Mounting bracket included. To view other accessories
please visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 9-28 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 112.5 Degrees
Vertical Viewing Angle: >70 Degrees
Includes: Stainless Steel Mounting Bracket
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Signal Mate (Misea Group)
|

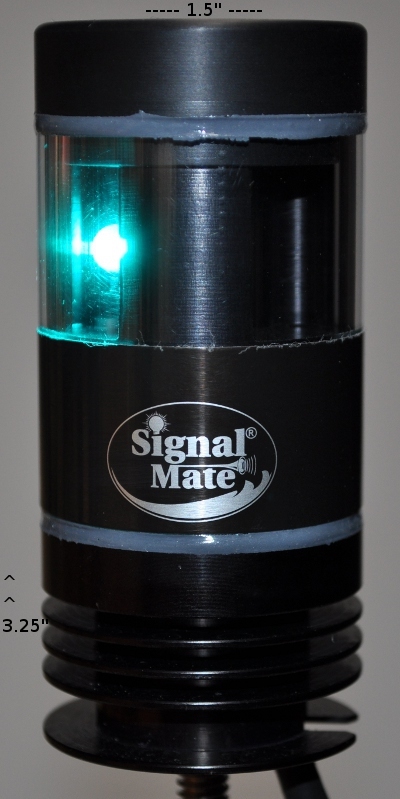

2NM GREEN LED 112.5° STARBOARD LIGHT
BY SIGNAL MATE The rugged, water tight LED Green
Starboard 112.5° Light has a two (2) nautical miles visibility
for vessels up to 165' (50 meters) in accordance with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). To view Adjustable Mounting Bracket and other accessories
please visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 10-30 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 112.5 Degrees
Vertical Viewing Angle: >70 Degrees
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Orca Green Marine
|

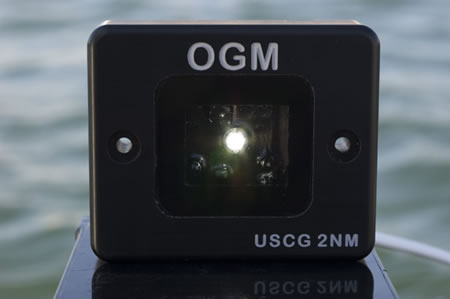

2NM WHITE LED 135° STERN RUNNING
LIGHT BY ORCA GREEN MARINE The LED White Stern
Running Light is built for the military, but available at a reasonable
price for any sailor demanding low power, long life navigation lights.
Solid construction with a flat low profile. Has a two (2) nautical
miles visibility for vessels up to 165' (50 meters) in accordance
with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). To view Mounting Bracket and other accessories please
visit LED
Light Accessories.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 9-28 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 135 Degrees
Vertical Viewing Angle: >70 Degrees
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Signal Mate (Misea Group)
|

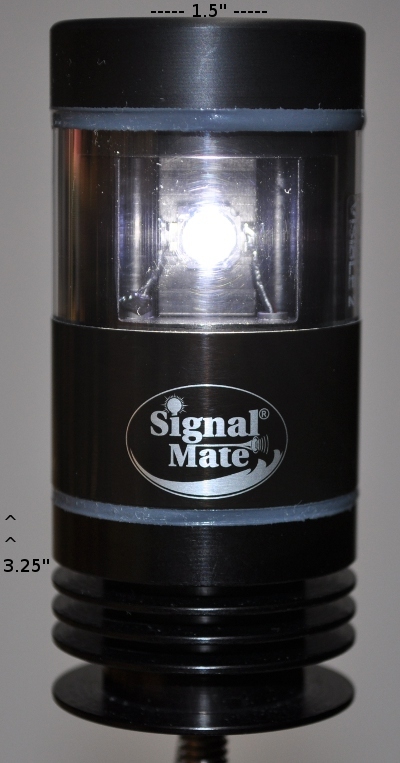

2NM WHITE LED 135° STERN LIGHT BY
SIGNAL MATE The rugged, water tight White LED 135°
Stern Light has a two (2) nautical miles visibility for vessels
up to 165' (50 meters) in accordance with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). To view Adjustable Mounting Bracket and other accessories
please visit the LED
Light Accessories webpage.
Made in USA.
Visibility: Two (2) Nautical Miles
Light Source: Single LED, 50,000 Hour Full-Brightness Life
Voltage Range: 10-30 VDC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Cast Acrylic Lens, 3M Waterproof
Seal
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Horizontal Viewing Angle: 135 Degrees
Vertical Viewing Angle: >70 Degrees
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
Warranty: Three (3) Years
|

Click for larger image
Orca Green Marine
|

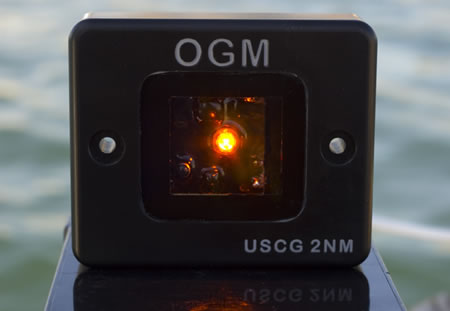

2NM AMBER LED 112.5° TOWING LIGHT
BY ORCA GREEN MARINE WITH 3M WATERPROOF SEAL Solid
construction. This LED Amber Towing Light is built for the military,
but available at a reasonable price for any sailor demanding low
power, long life navigation lights. Flat low profile. Has a two
(2) nautical miles visibility for vessels up to 165' (50 meters)
in accordance with US
Coast Guard Rule 22(b), Rule
23(a) and Rule
25(a). For Mounting Bracket and other accessories please visit
LED
Light Accessories.
Made in USA.
Certified Two (2) Nautical Miles to USCG, ABYC A-16 &
72 COLREGS Standards
LED: Single LED, 50,000 Hour Full-Brightness Life
Input Voltage: 8-24 VAC/DC
Current Draw: 0.170 Amp at 12VDC
Construction: Anodized Aluminum, Acrylic Lens
Wiring: 2-Conductor 20-Gauge Marine Grade (2 Feet Cable Supplied)
Environment: Harsh Marine; Waterproof, Submersible
Viewing Angle: Horizontal 112.5°, Vertical >70°
Warranty: 2 Years
|

Click for larger image
Orca Green Marine (Misea Group)
|

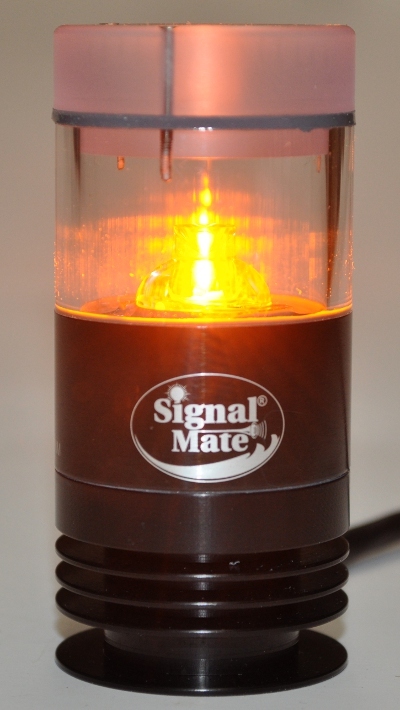

2NM AMBER LED HOVERCRAFTS, INLAND DREDGING
PIPELINE, TOWING NAVIGATION AND SPECIAL FLASHING LIGHTS BY SIGNAL
MATE The rugged, water tight Amber LED Hovercrafts,
Inland Dredging Pipeline, Towing Navigation and Special Flashing
Lights have a two (2) nautical miles visibility in accordance with
the US Coast Guard for:
Select between Model Types in Pull-Down Menu below:
Hovercrafts - Hovercraft Amber LED 360° Light @ 120 Flashes
per Minute - for vessels up to 165' (50 meters) while in non-displacement
mode
Rule 23(a). Horizontal Viewing Angle 360°, Vertical Viewing
Angle +/- 18°
Inland Dredging Pipeline - Dredging Amber LED 360° Light
@ 60 Flashes Per Minute - USCG
Annex 5, 88.15. Horizontal Viewing Angle 360°, Vertical
Viewing Angle +/- 18°, Flash Rate 50 to 70 flashes per minute
Towing Navigation - Towing Amber LED 135° Navigation
Light for vessels of 40' (12 meter) or more but less than 165' (50
meters) in length USCG
Rule 22. Horizontal Viewing Angle 135°, Vertical Viewing
Angle +/- 18°
Double Flashing - Double Flashing Amber 360° Light at
120 Flashes per Minute Rule
22(b) and Rule
24(f). Horizontal Viewing Angle 360°, Vertical Viewing Angle
+/- 18°
Visibility: Two (2) Nautical Miles
Voltage Range: 10 to 30 VDC
Current Draw: 0.10 to 0.16 Amps @ 12 VDC
Construction: Black Hard Anodized Aluminum, Polycarbonate Outer
Lens
Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire

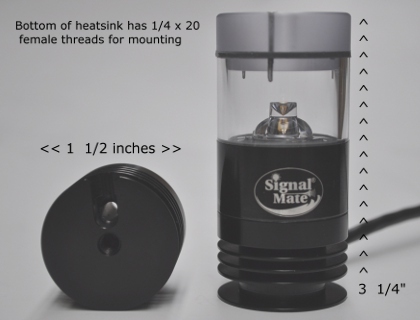

Mounting: 1/4 - 20 Female Threads at Top and Bottom for Mounting
Durability: Waterproof, Submersible, Designed to Exceed IP67
To view Adjustable Mounting Bracket and other accessories please
visit the LED
Light Accessories webpage.
Warranty: Three (3) Years
Made in USA
|
|
|
|
|
