Cal June / Jim Buoy Giant Marine Fenders
Click for larger image

Cal June / Jim Buoy

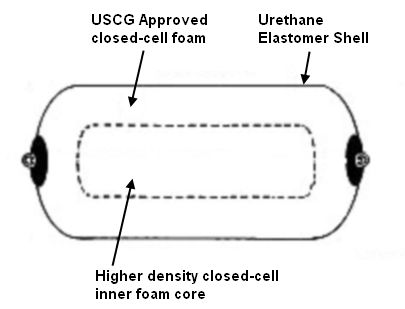

Cal June / Jim Buoy Giant Marine Fenders Diagram

Cal une / Jim Buoy Giant Marine Fenders End Cap Swivel Assembly

Galvanized steel swivel assembly allows free movement in all directions and provides quick and secure rope attachment features on models #236, #248 and #260

GIANT MARINE FENDERS BY JIM BUOY The Giant Marine Fenders are not an inflatable but a 98% closed-cell inner foam core that will never blow-out or sink! Often referred to in the industry as the "hull saver", Jim Buoy's unique design is not simply a roll of foam but is a carefully crafted, quality product incorporating the same U.S. Coast Guard Approved foam used in the Jim-Buoy Industrial Life Preservers. The end product is a rugged fender that provides "stop-gap" compression when hard hit time after time; not only protecting the ship from damage but the dock and even the fender itself.

Encased in an outer covering of "Elastomic Skin" (up to 5/16" thick material, some reinforced with nylon mesh) plus a urethane skin base, the Jim Buoy Giant Marine Fenders are extremely resilient and able to flex with the rigors of high energy berthing over and over again, providing the user with extended service under all conditions. All Models may be mounted vertically or float horizontally. Models up to 24" diameter feature a 1" thru-hole that provides easy access for tethering while the larger models are furnished with a specially designed "end cap" that incorporates a 5/8'' or 1-1/4'' shaft and galvanized steel rope swivel for maximum strength at this critical area of stress (see illustration to the left).

  • Installation Tips - Fenders vertically when coming along side another ship or dock allowing the line from the lower end of the Fender to be free. After the ship's lines are secure, pull the Fender to a horizontal position. Use additional Fenders during rough weather.
  • Repair Service - If your fender is damaged by misuse or eventual "wear and tear", repair kits are available. Arrangements may also be made for Jim Buoy to recondition them to near-new condition and return to owner as needed - please inquire for complete details.
  • US$239.95 / EACH FREE SHIPPING OVER $100*
    Color: Black · Length: 34" · Diameter: 12" · Thru-Hole Size Material: 1" PVC · Stand-Off Distance: 6" · Actual Weight: 35.0 lbs. · Part Number: 212
    US$389.95 / EACH FREE SHIPPING OVER $100*
    Color: Black · Length: 44" · Diameter: 14" · Thru-Hole Size Material: 1" PVC · Stand-Off Distance: 8" · Actual Weight: 45.0 lbs. · Part Number: 214
    US$499.95 / EACH FREE SHIPPING OVER $100*
    Color: Black · Length: 50" · Diameter: 18" · Thru-Hole Size Material: 1" PVC · Stand-Off Distance: 12" · Actual Weight: 50.0 lbs. · Shipping Weight: 83.5 lbs. · Part Number: 218
    US$709.95 / EACH FREE SHIPPING OVER $100*
    Color: Black · Length: 53" · Diameter: 24" · Thru-Hole Size Material: 1" PVC · Stand-Off Distance: 14" · Actual Weight: 70.0 lbs. · Shipping Weight: 157.4 lbs. · Part Number: 224
