Imtra Marine Products

Imtra LED Chart & Task Lights on this webpage (FREE SHIPPING OVER $100*):
Kiel Flexible LED Task Lights
Ocean LED Chart Lamps
F4 TouchLED Task Lights
F4 TouchLED Bulkhead Base Task Lights
F4 TouchLED Outdoor Task Lights
For more information regarding LED Lighting

Kiel Polished Chrome White Glass Shade Built-in Dimmer LED Task Lights by Imtra Marine Lighting

Click for larger image

Imtra Marine Lighting


Kiel Matte Chrome White Glass Shade Built-in Dimmer LED Task Lights by Imtra Marine Lighting
KIEL FLEXIBLE LED TASK LIGHTS BY IMTRA The Kiel LED Flexible Task Light may be table-top mounted or installed on a wall/bulkhead. It features a heavy duty brass coil gooseneck which holds its position without sagging or swaying. It is an effective desk or chart light and boasts exceptional illumination with a comfortable (warm) color temperature & hue. Furthermore, this fully dimmable fixture features a micro-pushbutton "soft-switch" conveniently located right on the fixture's base. Keeping your finger on the "soft-switch" will vary the light intensity to the desired setting. The intelligent built-in dimmer module also has a memory feature that recalls the last light level you set before turning the fixture off. Finished in Polished Chrome, Matte Chrome or Polished Gold. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

Features & Benefits: Solid Brass Construction · Heavy Duty Brass Coil Neck · Hand Crafted Glass Shade · Integrated Constant-Current Driver · Built-In "Soft-Switch" Dimming · Substantial Power Savings · Desktop or Bulkhead Mounting
US$259.95 - $269.95 / EACH
  • Finish: Polished Chrome, Matte Chrome or Polished Gold
  • Materials: Brass/Aluminum/White Glass Shade
  • Trim Ring Diameter: 1.47" (37.5mm)
  • Base Diameter: 2.16" (55mm)
  • Full Extension (from wall): 16" (406.5mm)
  • Voltage: 11-30VDC
  • Input Power (Watts): 3W
  • Lumens: 145 lms
  • LED: 3W Luxeon
  • Driver: DC to DC constant-current
  • Beam Angle (FWHM): 45°
  • Correlated Color Temperature (CCT): 3100K
  • Color Rendering Index (CRI): 83
  • Wire Size: See Chart
  • Lifetime Hours (L70): 50,000 hrs (70% output)
  • Electrical Protections: Transient and Reverse Polarity
  • Dimmer Module: Built-in with micro push-button
  • Mounting Method: Screw fasteners (included)
  • Ingress Protection: IP20
  • Manufacturer: Prebit (Germany)
  • Weight: 1.0 lbs.
  • Part Number: ILPB21713305 / ILPB21713307 / ILPB21713309
  • Polished Stainless Steel Ocean LED Chart Lamps by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting
    OCEAN LED CHART LAMPS BY IMTRA The all stainless steel Ocean Chart Light with LED bulb offers the same traditional features as the halogen version, but comes packaged with our highly acclaime "X-Beam" LED bulb. The Ocean LED matches the light intensity and color hue of a 10W halogen with the added benefit of much lower amp draw and no radiated heat. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Features & Benefits: Stainless Steel Construction With Gold Badge · Styled to Match Ocean Reading Lights · Flexible "Umbilical" Style Neck · High Output SMD LEDs · Constant-Current Drive Topology · Over-Voltage Protection · No Radiated Heat · Push Button On/Off Switch
    US$229.95 - $254.95 / EACH
  • Size: Small or Medium
  • Finish: Stainless Steel
  • Housing Material: Stainless Steel
  • Base Diameter: 3.62" (92mm)
  • Small & Medium
  • Bell Diameter: Small 2.96" (75mm) · Medium 3.54" (90mm)
  • Arm Length: 15.75" (400mm)
  • Small & Medium
  • LED Bulb: G4 LED Bulb, Back-Pin, 10 x LED
  • LED Color: Warm White
  • Input Voltage: 8-30VDC
  • Power Consumption: 2.2W
  • Beam Angle: 120°
  • Ingress Protection: IP20
  • Electrical Protection: Polarity reversal
  • Wire Size: See Chart
  • Integral Switch: Push Button On/Off Switch
  • Manufacturer: Cabin Denmark
  • Weight: 0.75 lbs.
  • Part Number: MC36H-K / MC56H-K

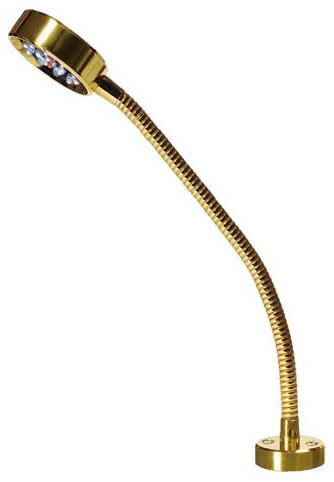

  • F4 Black TouchLED Task Light by Imtra Marine Lighting F4 Polished Gold TouchLED Task Light by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    F4 Satin Nickel TouchLED Task Light by Imtra Marine Lighting

    F4 TouchLED Task Light Diagram by Imtra Marine Lighting
    F4 TOUCHLED TASK LIGHTS BY IMTRA This new generation F4 Touch LED Task Light offers many unique features using high tech components. Listed below are a few of the features of this innovative LED. The Touch LED is available with the option of five different finishes; Black, Polished Gold, Matte Chrome, Satin Nickel & Polished Chrome. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Features & Benefits: Revolutionary Patented LED Technology
    · No Mechanical Switches - Touch Activation · Programmable "Red" Auto Night-Light Function · Night-Time Locator Light · Current Regulated Driver · Flexible Gooseneck Design (3 Arm Lengths available) · Used as Chart Light or Reading Task Light · Installation Instructions
    US$164.95 - $169.95 / EACH
  • Finish: Black, Matte Chrome, Polished Gold, Satin Nickel, Polished Chrome
  • Housing Material: Brass
  • Bell Diameter: 1.97"/50mm
  • Base Dimensions: 1.36"/34.5mm
  • Arm Length: 11.81" (300mm)
  • Voltage: 10-30VDC
  • Power Consumption: Off mode: 10/5 mA, Night Light Mode: 20/10mA
  • LEDs: Fifteen (15) 5mm Cool White LEDs and One (1) 5mm Red LED
  • Beam Angle (FWHM): 44°
  • Luminous Flux: 80 lumens
  • Kelvin Temp.: 8200K
  • Working Life: 20,000 hrs.
  • Electrical Protections: Reverse Polarity, Surge Protection
  • Integral Switch: Yes, Photo-sensor TouchLED
  • Dimmer Module: Special Order
  • Mounting Method: Screw-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP40
  • Weight: 0.75 lbs.
  • Part Number: IL4493 / IL4495 / IL4497 / IL4499 / IL4501
  • F4 TouchLED Task Bulkhead Base Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting


    F4 TouchLED Task Bulkhead Base Light Diagram by Imtra Marine Lighting
    F4 TOUCHLED BULKHEAD BASE TASK LIGHTS BY IMTRA This new generation F4 Touch LED Bulkhead Base Task Light offers many unique features using high tech components. Listed below are a few of the features of this innovative LED. The Bulkhead Base Touch LED is available in two sizes, 11.81" and 19.69" in Black Finish ONLY. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Features & Benefits: Revolutionary Patented LED Technology
    · No Mechanical Switches - Touch Activation · Programmable "Red" Auto Night-Light Function · Night-Time Locator Light · Current Regulated Driver · Flexible Gooseneck Design (3 Arm Lengths available) · Used as Chart Light or Reading Task Light · Installation Instructions
    US$164.95 - $169.95 / EACH
  • Finish: Black
  • Housing Material: Brass
  • Bell Diameter: 1.97"/50mm
  • Base Dimensions: 1.36"/34.5mm
  • Arm Lengths: 11.81" (300mm), 19.69" (500mm)
  • Voltage: 10-30VDC
  • Power Consumption: Off mode: 10/5 mA, Night Light Mode: 20/10mA
  • LEDs: Fifteen (15) 5mm Cool White LEDs and One (1) 5mm Red LED
  • Beam Angle (FWHM): 44°
  • Luminous Flux: 80 lumens
  • Kelvin Temp.: 8200K
  • Working Life: 20,000 hrs.
  • Electrical Protections: Reverse Polarity, Surge Protection
  • Integral Switch: Yes, Photo-sensor TouchLED
  • Dimmer Module: Special Order
  • Mounting Method: Screw-Mount
  • Wire Size: See Chart
  • Ingress Protection: IP40
  • Weight: 0.75 lbs.
  • Part Number: IL5321 / IL5223
  • F4 TouchLED Task Outdoor Lights by Imtra Marine Lighting

    Click for larger image

    Imtra Marine Lighting
    F4 TOUCHLED OUTDOOR TASK LIGHTS BY IMTRA This new generation F4 Touch LED Outdoor Task Light offers many unique features using high tech components. Listed below are a few of the features of this innovative LED. Please read regarding Maryland, Massachusetts and Washington shipments sales tax.

    Features & Benefits: Revolutionary Patented LED Technology · No Mechanical Switches - Touch Activation · Programmable "Red" Auto Night-Light Function · Night-Time Locator Light · Current Regulated Driver · Flexible Gooseneck Design (3 Arm Lengths available) · Used as Chart Light or Reading Task Light · Installation Instructions
    US$259.95 / EACH
  • Finish: Stainless Steel
  • Bulb: LED
  • Voltage: 10-30VDC
  • Features: Finger touch control for on/off and white to red. Programmable photo-sensitive mode activates red LED after dark
  • Lens: White/Red
  • Length: 11.81" (300mm)
  • Kelvin Temperature: 8200K
  • Luminous Flux: 80 lms
  • Beam Angle (FWHM): 44°
  • Wire Size: See Chart
  • Ingress Protection: IP40
  • Weight: 0.75 lbs.
  • Part Number: IL5561
