Horn & Light Controllers on this webpage (FREE SHIPPING OVER $100*):
Portable Controller Signal Mate
Console Mount Controller Signal Mate
Flush Mount Controller Signal Mate
Do It Yourself Signaling Safety System Signal Mate

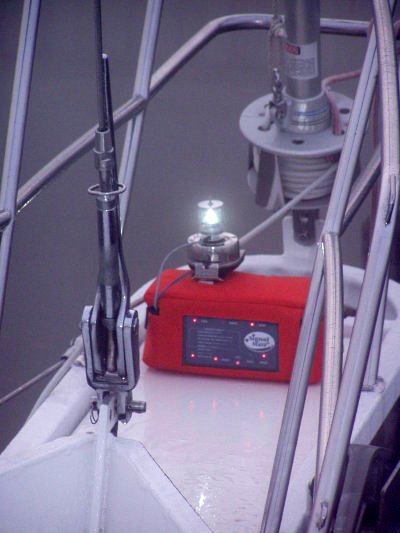

Portable Controller by Signal Mate

Click for larger image

Signal Mate (Misea Group)


Portable Controller by Signal Mate

Portable Controller Panel by Signal Mate

PORTABLE CONTROLLER BY SIGNAL MATE The Portable Controller by Signal Mate is a complete self-contained system providing the required USCG sound signals for a vessel during restricted visibility or emergencies. It has two outputs that can be used independently or synchronized allowing for both the horn and/or light to be used for signaling. Make your vessel's presence known with sound & light signaling. Don't risk being caught in the fog or heavy rain without being prepared. Signal properly with a push of a button for restricted visibility or distress. Prevent collisions and be located quickly in case of emergencies. Please refer to the The Boaters TV Video, Operation and Theory Video, Flush Mount Installation Video, Signal Mate User Manual, Wiring Instructions, and Sound and Light Signals for further information.

  • Specifically Designed for Crew and Boat Safety in Conditions of Restricted Visibility and Emergency Situations (USCG Rule 35); Maneuvering and Warning Signals (USCG Rule 34)
  • Light or Horn (20 Amps Each) can be Operated Independently or Synchronized (USCG Rule 36); Signal When in Distress and Require Assistance (USCG Rule 37)
  • Side Receptacle Allows the Additional Use of a Portable Search Light During Restricted Visibility or Emergency
  • User Friendly - Remove the Horn and LED Light, Connect Battery, Insert Horn into Bracket and Position Light for Maximum Visibility - Close the Bag and Start Signaling
US$469.95 / EACH
  • Length: 11" · Height: 5" · Width: 7"

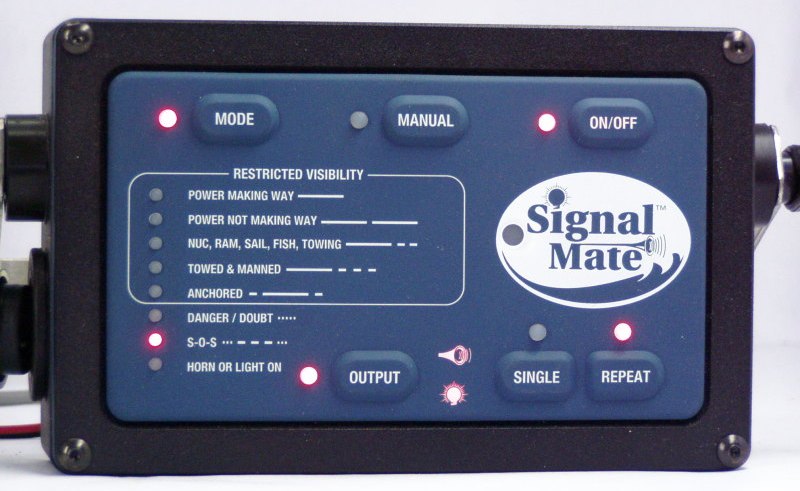

  • Controller Panel (see left bottom image):
  • Silicon Rubber Keypad with Automatic Red Lighting for Night Vision
  • Three (3) Modes of Operation - Manual, Automated or On/Off Operation
  • Push Button Selections of Specific Signals - Restricted Viability, Danger/Doubt, SOS, Etc.
  • LED:
  • Energy Efficient High Brightness 3 Nautical Mile 360° LED Light
  • Exceeds Certified Three (3) Nautical Miles to USCG, ABYC A-16 & 72 COLREGS Standards
  • Electronics:
  • Output Protected Power MOSFET'S (No Relays)
  • Solid State SMT Technology
  • Conformal Coated Electronics
  • Pre-Wired and Ready for Immediate Use
  • Wiring: 16 Feet of Cable for Hoisting for Better Visibility
  • Input Voltage: 10-32 VDC
  • Construction: Black Powder-Coated Aluminum Enclosure
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Self-Contained Package Includes Controller, 106db Compact Horn, 360° High Intensity LED Light, Sealed Seven (7.0) Ampere-Hour AGM battery; Three (3) Stage Smart Charger and Operational Orange Carry Bag
  • Warranty: 5 years
  • Shipping Weight: 12.0 lbs.
  • Part Number: SM-P / SMP

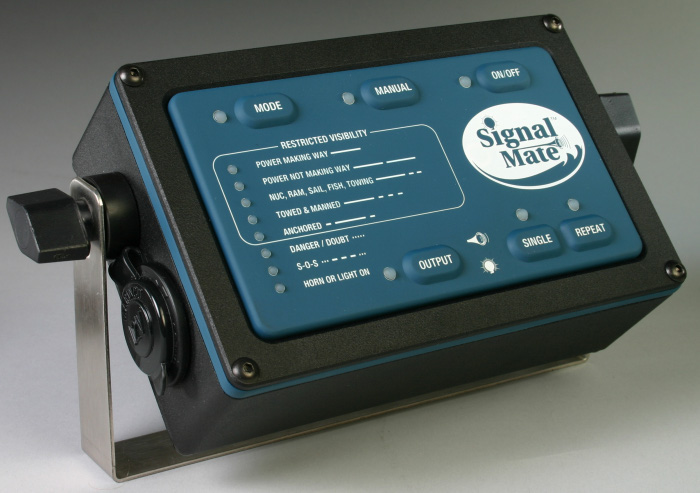

  • Console Mount Controller by Signal Mate

    Click for larger image

    Signal Mate (Misea Group)


    Console Mount Controller by Signal Mate

    CONSOLE MOUNT CONTROLLER BY SIGNAL MATE The automated Console Mount Controller by Signal Mate provides the required USCG sound signals for a vessel during restricted visibility or emergencies. It has two outputs that can be used independently or synchronized allowing for both the horn and/or light to be used for signaling. Make your vessel's presence known with sound & light signaling. Don't risk being caught in the fog or heavy rain without being prepared. Signal properly with a push of a button for restricted visibility or distress. Prevent collisions and be located quickly in case of emergencies. Please refer to the The Boaters TV Video, Operation and Theory Video, Flush Mount Installation Video, Signal Mate User Manual, Wiring Instructions, and Sound and Light Signals for further information.

    • Specifically Designed for Crew and Boat Safety in Conditions of Restricted Visibility and Emergency Situations (USCG Rule 35); Maneuvering and Warning Signals (USCG Rule 34)
    • Light or Horn (20 Amps Each) can be Operated Independently or Synchronized (USCG Rule 36); Signal When in Distress and Require Assistance (USCG Rule 37)
    • Side Receptacle Allows the Additional Use of a Portable Search Light During Restricted Visibility or Emergency
    US$329.95 / EACH
  • Length: 6-1/2" · Height: 4" · Width: 2"
  • Controller Panel:
  • Silicon Rubber Keypad with Automatic Red Lighting for Night Vision
  • Three (3) Modes of Operation - Manual, Automated or On/Off Operation
  • Push Button Selections of Specific Signals - Restricted Viability, Danger/Doubt, SOS, Etc.
  • Electronics:
  • Output Protected Power MOSFET'S (No Relays)
  • Solid State SMT Technology
  • Conformal Coated Electronics
  • Input Voltage: 10-32 VDC
  • Construction: Black Powder-Coated Aluminum Enclosure
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Includes Stainless Steel Mounting Bracket with Indent Locking Adjustments
  • Warranty: 5 years
  • Shipping Weight: 4.0 lbs.
  • Part Number: SM-C / SMC

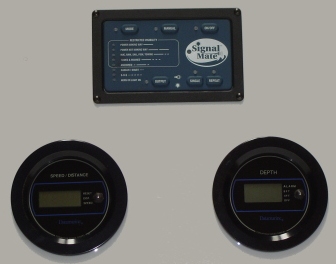

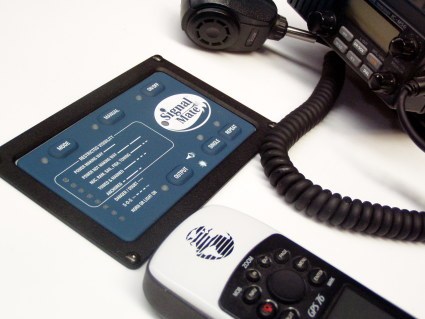

  • Flush Mount Controller by Signal Mate

    Click for larger image

    Signal Mate (Misea Group)


    Flush Mount Controller by Signal Mate

    Flush Mount Adapter Plate by Signal Mate

    FLUSH MOUNT CONTROLLER BY SIGNAL MATE The automated Flush Mount Controller by Signal Mate provides the required USCG sound signals for a vessel during restricted visibility or emergencies. It has two outputs that can be used independently or synchronized allowing for both the horn and/or light to be used for signaling. Make your vessel's presence known with sound & light signaling. Don't risk being caught in the fog or heavy rain without being prepared. Signal properly with a push of a button for restricted visibility or distress. Prevent collisions and be located quickly in case of emergencies. Please refer to the The Boaters TV Video, Operation and Theory Video, Flush Mount Installation Video, Signal Mate User Manual, Wiring Instructions, and Sound and Light Signals for further information.

    • Specifically Designed for Crew and Boat Safety in Conditions of Restricted Visibility and Emergency Situations (USCG Rule 35); Maneuvering and Warning Signals (USCG Rule 34)
    • Light or Horn (20 Amps Each) can be Operated Independently or Synchronized (USCG Rule 36); Signal When in Distress and Require Assistance (USCG Rule 37)
    • Side Receptacle Allows the Additional Use of a Portable Search Light During Restricted Visibility or Emergency
    US$299.95 - $324.95 / EACH
  • Length: 6-1/2" · Height: 4" · Width: 2"
  • Controller Panel:
  • Silicon Rubber Keypad with Automatic Red Lighting for Night Vision
  • Three (3) Modes of Operation - Manual, Automated or On/Off Operation
  • Push Button Selections of Specific Signals - Restricted Viability, Danger/Doubt, SOS, Etc.
  • Electronics:
  • Output Protected Power MOSFET'S (No Relays)
  • Solid State SMT Technology
  • Conformal Coated Electronics
  • Input Voltage: 10-32 VDC
  • Construction: Black Powder-Coated Aluminum Enclosure
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Includes Stainless Steel Mounting Bracket with Indent Locking Adjustments

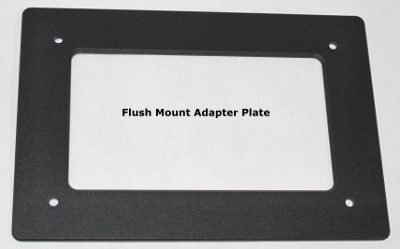

  • Optional: Adapter Plate When Mounting Into Panels Thicker Than 1/4" (see image on right)
  • Warranty: 5 years
  • Shipping Weight: 4.0 lbs.
  • Part Number: SM-F / SMF
  • Do It Yourself Signaling Safety System by Signal Mate

    Click for larger image

    Signal Mate (Misea Group)


    Flush Mount Adapter Plate by Signal Mate

    DO-IT-YOURSELF (DIY) SIGNALING SAFETY SYSTEM BY SIGNAL MATE The Do It Yourself Signaling Safety System by Signal Mate has an automatic Console Mount Controller (optional Flush Mount Controller) providing the key components for a vessel's signaling equipment and the required USCG sound signals for a vessel during restricted visibility or emergencies. It has two outputs that can be used independently or synchronized allowing for both the horn and/or light to be used for signaling. Make your vessel's presence known with sound & light signaling. Don't risk being caught in the fog or heavy rain without being prepared. Signal properly with a push of a button for restricted visibility or distress. Prevent collisions and be located quickly in case of emergencies. The system consists of the automated Console Mount Controller (optional Flush Mount Controller), 106 db horn and a high intensity All-Around 3 Nautical Mile LED Anchor Light. Please refer to the The Boaters TV Video, Operation and Theory Video, Flush Mount Installation Video, Signal Mate User Manual, Wiring Instructions, and Sound and Light Signals for further information.

    • Specifically Designed for Crew and Boat Safety in Conditions of Restricted Visibility and Emergency Situations (USCG Rule 35); Maneuvering and Warning Signals (USCG Rule 34)
    • Light or Horn (20 Amps Each) can be Operated Independently or Synchronized (USCG Rule 36); Signal When in Distress and Require Assistance (USCG Rule 37)
    • Side Receptacle Allows the Additional Use of a Portable Search Light During Restricted Visibility or Emergency
    • The Controller, Horn and Light can be Wired Directly to the Primary Battery or to a Secondary Battery Providing an Emergency Back-Up
    US$374.95 - $399.95 / EACH
  • Controller Panel:
  • Silicon Rubber Keypad with Automatic Red Lighting for Night Vision
  • Three (3) Modes of Operation - Manual, Automated or On/Off Operation
  • Push Button Selections of Specific Signals - Restricted Viability, Danger/Doubt, SOS, Etc.
  • Electronics:
  • Output Protected Power MOSFET'S (No Relays)
  • Solid State SMT Technology
  • Conformal Coated Electronics
  • Input Voltage: 10-32 VDC
  • Construction: Black Powder-Coated Aluminum Enclosure
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Optional: Console Mount Controller Can Be Exchanged For a Flush Mount Controller
  • Optional: Adapter Plate for Flush Mount Controller When Mounting Into Panels Thicker Than 1/4" (see image on right)
  • Includes Automated Console Mount Controller (optional Flush Mount Controller), 106 db Horn (1' of wire) and High Intensity White LED 360° All-Around Three (3) Nautical Mile Anchor Light (2-1/2' of wire)
  • Warranty: 5 years
  • Shipping Weight: 5.0 lbs.
  • Part Number: DIY

  • TOP
