LED Masthead Steaming Lights on this webpage (FREE SHIPPING OVER $100*):
3NM LED Masthead Light Orca Green Marine
3NM LED Masthead Light Signal Mate
5NM LED Masthead Light with Adjustable Bracket Signal Mate
3NM Combination LED Masthead & Deck Light Signal Mate
5NM Combination LED Masthead & Deck Light with Adjustable Bracket Signal Mate
3NM Combination LED Masthead & Anchor Navigation Light Signal Mate
For more information regarding LED Lighting

Orca Green Marine LED Steaming Masthead Light
Click for larger image

Orca Green Marine

3NM WHITE LED 225° MASTHEAD STEAMING LIGHT BY ORCA GREEN MARINE Rugged, waterproof LED Steaming Masthead Light has a three (3) nautical mile visibility for vessels up to 65 feet (20 meters) in accordance with United States Coast Guard (USCG) Approved. To view Top and Angle Mounting Brackets and other accessories please visit LED Light Accessories. Made in USA Made in USA.

US$469.95 / EACH
  • Height: 2.7" · Diameter: 2.7" · Weight: 10.0 oz.
  • Visibility: Three (3) Nautical Miles
  • Voltage Range: 9-28 VDC
  • Energy Efficient: 0.3 Amp at 12VDC
  • Construction: Hard Anodized Aluminum, Cast Acrylic Lens with UV Inhibitors
  • Wiring: 3-Pin Waterproof Quick Disconnect Plug with Two (2) Feet Mating Cable
  • Durability: Waterproof, Submersible
  • Viewing Angle: Horizontal 225°, Vertical >70°
  • Warranty: Three (3) Years
  • Certifications: USCG 3NM, ABYC-A16, COLREGS '72
  • Warranty: Three (3) Years
  • Part Number: LX3-MH / LX3MH

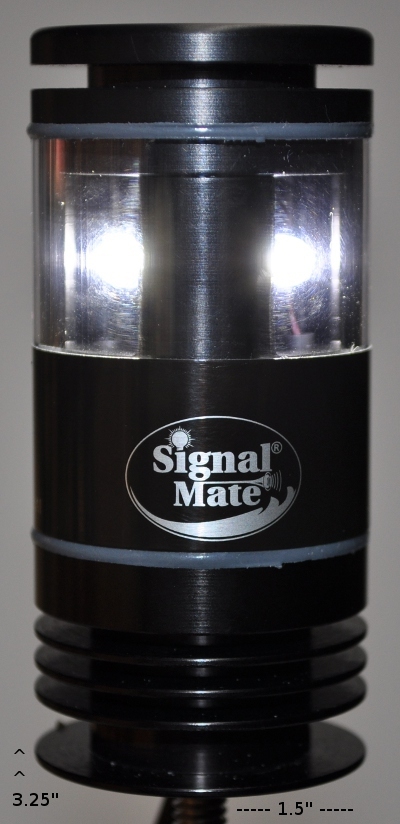

  • 2NM and 3NM LED White Masthead Steaming 225 Degree Light with Adjustable Bracket by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    3NM WHITE LED 225° MASTHEAD STEAMING LIGHT BY SIGNAL MATE Rugged, water tight White LED 225° Masthead (Steaming) Lights has a three (3) nautical mile visibility for vessels up to 65 feet (20 meters) in accordance with United States Coast Guard (USCG) Approved. To view Mounting Brackets and other accessories please visit LED Light Accessories. Made in USA Made in USA.

    US$329.95 / EACH
  • Height: 2.7" · Diameter: 2.7" · Weight: 10.0 oz.
  • Visibility: Three (3) Nautical Miles
  • Voltage Range: 9-30 VDC
  • Energy Efficient: 0.3 Amps @ 12V
  • Construction: Hard Anodized Aluminum, Poly Carbonate Lens
  • Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
  • Mounting: 1/4- 20 Female Threads at Top and Bottom for Mounting
  • Durability: Waterproof, Submersible
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Certifications: USCG 3NM, ABYC-A16, COLREGS '72
  • Warranty: Three (3) Years
  • Part Number: 3NM225W

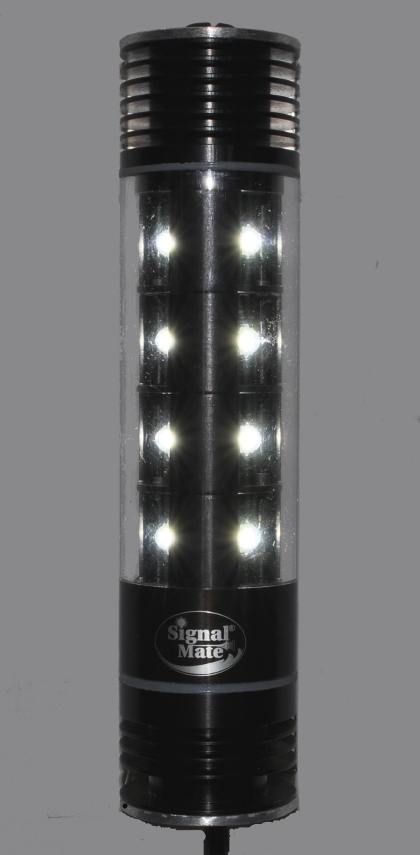

  • 5NM LED White Masthead Steaming 225 Degree Light with Adjustable Bracket by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    5NM WHITE LED 225° MASTHEAD (STEAMING) LIGHT WITH ADJUSTABLE BRACKET BY SIGNAL MATE The rugged, water tight White LED 225° Masthead (Steaming) Light has a five (5) nautical miles visibility for vessels of 39 feet (12 meters) or more, but not to exceed vessels over 65 feet (20 meters) in accordance with US Coast Guard Rule 22(b) and Rule 23(a). For other accessories please visit LED Light Accessories. Made in USA Made in USA.

    US$1,399.95 / EACH
  • Height: 6.25" · Diameter: 1.5" · Weight: 12.4 oz.
  • Visibility: Five (5) Nautical Miles
  • Horizontal Viewing Angle: 225 Degrees
  • Vertical Viewing Angle: +/- 18 Degrees
  • Input Voltage: 10-30 VDC
  • Energy Efficient: 0.7 Amps @ 12V
  • Construction: Hard Anodized Aluminum, Polycarbonate Outer Lens
  • Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
  • Durability: Waterproof, Submersible, Designed to Exceed IP67
  • Includes: Black Hard Anodized Aluminum Adjustable Bracket
  • Certifications: USCG 2NM, ABYC-A16, COLREGS 72
  • Warranty: Three (3) Years
  • Part Number: 5NM-Mast / 5NMMast
  • 3NM Combination LED White Masthead and Deck Light by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    3NM COMBINATION WHITE LED MASTHEAD & WHITE OR RED LED DECK LIGHT BY SIGNAL MATE The rugged, water tight Combination White LED Masthead and White or Red LED Deck Light has a three (3) nautical mile visibility for vessels up to 65 feet (20 meters) in accordance with US Coast Guard Rule 22(b) and Rule 23(a). Choice of White or Red Led Deck Lights. For Mounting Brackets and other accessories please visit LED Light Accessories. Made in USA Made in USA.

    US$659.95 / EACH
    Height: 7.75" · Diameter: 2.0" · Weight: 1 lbs. 1.0 oz. · Part Number: COM3NM/W/DECK / COM3NMWDECK / COM3NMRDECK / COM3NM/R/DECK

    3NM LED MASTHEAD LIGHT:
  • Certified Three (3) Nautical Miles to USCG, ABYC A-16 & 72 COLREGS Standards
  • LED: Two (2) Latest Technology High Brightness LED, 50,000 Hours LED Life
  • Input Voltage: 10-30 VAC/DC
  • Energy Efficient: 0.300 Amps @ 12V

    LED DECK LIGHT:
  • LED: Three (3) White or Red LEDs
  • 10 Degree Directional LED Lens Provides 3,300 lux @ 1 Meter
  • Lighting: 8' Diameter (90 Lux) @ 20', 10' Diameter (40 Lux) @ 30'
  • Input Voltage: 10-30 VAC/DC
  • Energy Efficient: 0.500 Amps @ 12V

    OTHER SPECIFICATIONS:
  • Exceeds Light Intensity Requirements for Safety, Current Regulated LEDs
  • Construction: Hard Anodized Aluminum, Polycarbonate Lens
  • Water Tight
  • Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
  • Warranty: Three (3) Years
  • 5NM Combination LED White Masthead and Deck Light by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    5NM COMBINATION WHITE LED MASTHEAD & WHITE LED DECK LIGHT WITH ADJUSTABLE BRACKET BY SIGNAL MATE The rugged, water tight Combination White LED Masthead and White or Red LED Deck Light has a five (5) nautical miles visibility. For mounting bracket and other accessories please visit LED Light Accessories. Made in USA Made in USA.

    US$1,459.95 / EACH
  • Height: 6.25" · Diameter: 1.5" · Weight: 12.4 oz.

  • 5NM LED MASTHEAD LIGHT:
  • Visibility: Five (5) Nautical Miles
  • LED: Eight (8) LEDs

    LED DECK LIGHT:
  • LED: Three (3) White LEDs
  • 10 Degree Directional LED Lens Provides 3,300 lux @ 1 Meter
  • Lighting: 8' Diameter (90 Lux) @ 20', 10' Diameter (40 Lux) @ 30'

    OTHER SPECIFICATIONS:
  • Input Voltage: 10-30 VDC
  • Energy Efficient: 0.7 Amps @ 12V
  • Durability: Waterproof, Submersible, Designed to Exceed IP67
  • Construction: Hard Anodized Aluminum, Polycarbonate Outer Lens
  • Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Includes: Black hard coated aluminum side mount bracket
  • Warranty: Three (3) Years
  • Part Number: 5NM-W-DECK / 5NMWDECK

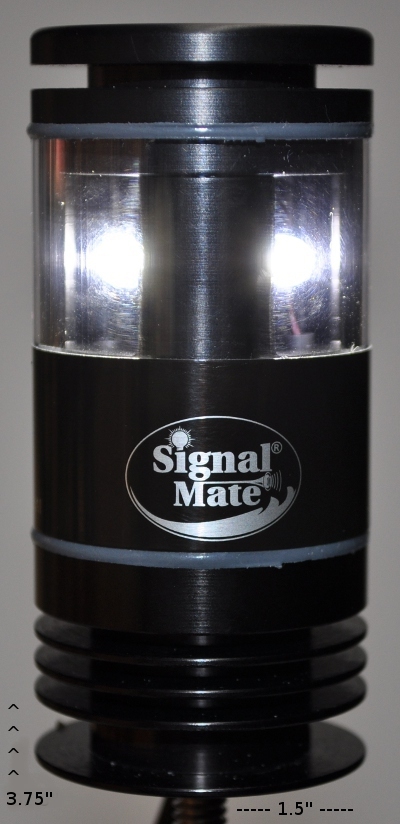

  • 3NM Combination LED Masthead (Steaming) & Anchor Navigation Light by Signal Mate (Misea Group)
    Click for larger image

    Signal Mate (Misea Group)

    3NM COMBINATION WHITE LED MASTHEAD (STEAMING) & WHITE LED ANCHOR LIGHT BY SIGNAL MATE The rugged, water tight Combination LED White Masthead & Anchor Light has a three (3) nautical miles visibility for vessels up to 65 feet (20 meters) in accordance with US Coast Guard Rule 22(b) and Rule 23(a). For Mounting Bracket and other accessories please visit LED Light Accessories. Made in USA Made in USA.

    The Combination Masthead (Steaming) & Anchor Light is only used as a masthead (225°), anchor light, or as an navigation light. To use as an anchor light, the masthead light needs to be turned on as well as the stern (135°) navigation light giving a 360° (225° + 135°) all around anchor navigation light. It should be mounted atop the mast with a 360° circle without obstructions.

    The Combination LED White Masthead & Anchor Light is a three (3) wire installation and uses two (2) separate printed circuit boards (one for the masthead and the other for the anchor light). Both must be turned on for the anchor light to be operational. For more information please read Signal Mate 3-Wire Instructions.

    The Black wire is battery negative (minus) common to both red and white wires. Red wire is battery positive (plus) and is switched on or off for the masthead (225°, steaming) light. White wire is battery positive (plus) and is switched on or off for the stern (135°) light and is used only when used as an anchor light.

    US$369.95 / EACH
  • Height: 6.25" · Diameter: 1.5" · Weight: 12.4 oz.
  • Visibility: Three (3) Nautical Miles
  • Input Voltage: 9-30 VDC
  • Energy Efficient: 0.3 Amps @ 12V
  • Construction: Hard Anodized Aluminum, Polycarbonate Outer Lens
  • Wiring: 2-1/2 Feet UV Outdoor 20 AWG Wire
  • Mounting: 1/4 - 20 Female Threads at Top and Bottom for Mounting
  • Environment: Harsh Marine, Water Tight, Tested -20 to +85 Degrees Celsius
  • Durability: Waterproof, Submersible
  • Certifications: USCG 3NM, ABYC-A16, COLREGS '72
  • Warranty: Three (3) Years
  • Part Number: COMBO_STM_ANC / COMBOSTMANC
