ANCHOR WINDLASS MANUAL DOUBLE-ACTION WITH DOUBLE CHAIN PIPES

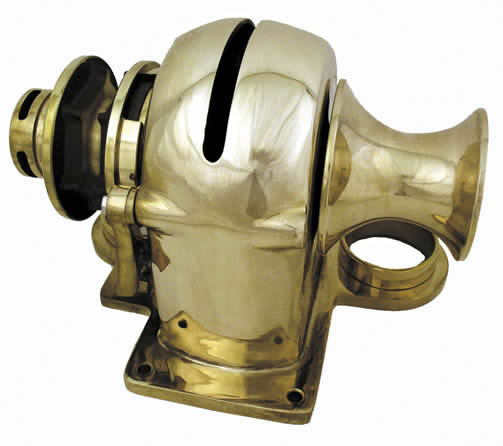

• HIGHLY POLISHED BRONZE WINDLASS SERIES 1000 with wildcats to fit High-Tensile, Proof Coil and BBB types of 5/16", 3/8" and 7/16" chain. Includes stainless steel handle. Wildcat included.
• Stainless steel main shaft is 1-1/8", fitted with replaceable bronze bushings. Idle gears are stainless steel with bronze bushings turning on 3/4" stainless steel shafts.
• Removable stainless steel handle (included - see Item #200077) operates the double-action ratchet drive system which provides smooth continuous rotation of capstan and wildcat on both forward and reverse strokes.
• Removable handle also engages the clutch, controlling the smooth-acting brake and allowing full control of chain while anchoring.
• The double-action ratchet mechanism provides smooth continuous rotation of capstan and wildcat on both forward and reverse strokes.
• Two integral rope/chain deck pipes include bronze caps for foul weather protection and incorporate a bronze bail on the underside of each cap for shackling the end of the anchor when not in use. Rope/chain deck pipes are a full 2-7/8” (inner diameter) and will accommodate mooring line with thimble.
• Chain stripper smoothly lifts chain off of wildcat, feeding it directly into chain deck pipe. (Welds on chain should face away from stripper.)
• Wildcat pawl allows independent operation of the rope capstan while anchor chain remains under full load on the wildcat. Dual wildcat configuration available by special order (additional charges will apply. Please email orders@sailboatstuff.com for Dual Wildcat order.)

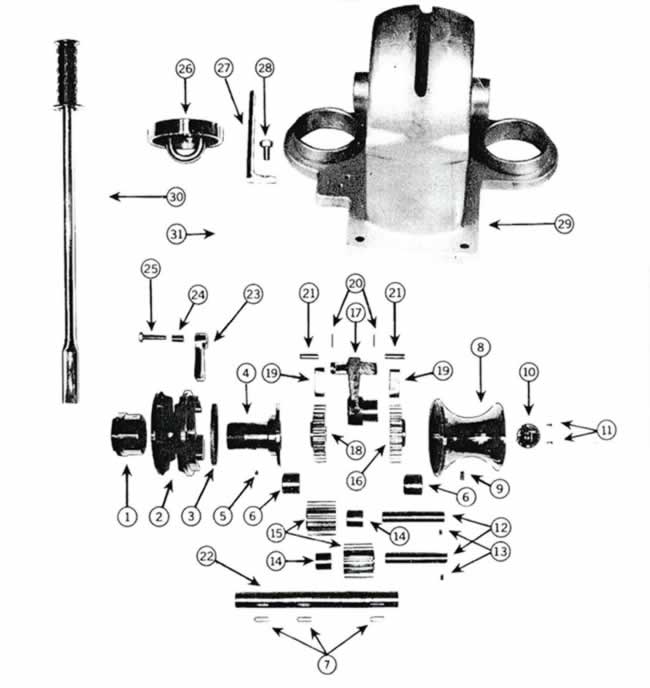

WINDLASS REPLACEMENT PARTS
