A&B Industries Stainless Steel Oval Rope/Chain Deck Pipe
A&B Industries (ABI)

OVAL ROPE/CHAIN DECK PIPE Oval rope/chain deck pipe opening allows large thimble to pass thru deck pipe and slot accommodates up to 3/8" chain, remaining in place when cover is closed. Cover is hinged and spring loaded eliminating rattling when in closed position. Cover slides and locks in open position for convenient hands-free feed of anchor rope. Electro-polished #316 investment cast stainless steel. Fasteners not included.

US$61.95 / EACH - POLISHED STAINLESS STEEL
Outside Flange: 4" x 5-5/8" Cut-Out Diameter: 2-3/4" x 4-1/8" Inside Opening: 2-1/2" x 3-3/4" Deck Height: 1-3/16" Fastener Size: 1/4" Weight: 2 lbs. P/N: 210177
A&B Industries Bronze & Chrome Round Rope/Chain Deck Pipe
Click for larger image

A&B Industries
ROUND ROPE/CHAIN DECK PIPE Oval rope/chain deck pipe includes ball on inside of cap for attaching shackles. When cover is rotated a watertight seal is achieved. Safety chain secures cap to base. Slots provide for up to 1" diameter line and up to 3/8" chain links. Either chain or line can be secured with the cap on. Finished in Polished Bronze and Polished Chrome (over Bronze). Fasteners not included.
US$86.95 - $94.95 / EACH
Base Diameter: 5-3/8" Cut-Out Diameter: 3-1/2" Deck Height: 2" Fastener Size: #10 Weight: 2.5 lbs. P/N: 210012 / 210013
US$41.95 / EACH
Replacement Cap with Chain ~ Inner Diameter: 3-3/4" Outer Diameter: 4: Weight: 1 lbs. P/N: 210003 / 210004

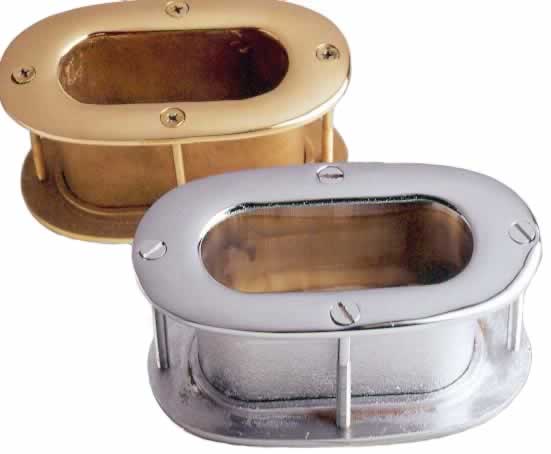

A&B Industries Titan Tuff Gold & Stainless Steel Oval Hawse Pipe
Click for larger image

A&B Industries
OVAL HAWSE PIPE Oval hawse pipe spigot is inserted into finish ring for smooth radius, and can be trimmed to accommodate bulwark thickness. Finish ring is tapped for bolts. Small size includes 3/16" bolts; large size includes 1/4" bolts. Finished in Polished Bronze, Polished Cast Titan Tuff™ Gold and Polished Cast Stainless Steel. Fasteners included.
US$54.95 - $69.95 EACH
Opening Dimensions: 3-5/8" x 1-3/8" Flange Dimensions: 5" x 2-3/4" Cut Out: 4" x 1-3/4" Bulwark Thickness: 2" Mounting Bolts: 3/16" Weight: 2 lbs. P/N: 210212 / 210277
US$119.95 - $137.95 EACH
Opening Dimensions: 4-1/2" x 1-7/8" Flange Dimensions: 6-1/2" x 3-5/8" Cut Out: 4-1/2" x 1-5/8" Bulwark Thickness: 3" Mounting Bolts: 1/4" Weight: 5 lbs. P/N: 210312 / 210377
A&B Industries Polished Bronze & Chrome Oval Hawse Pipe with Cleats
Click for larger image

A&B Industries (ABI)
OVAL HAWSE PIPE WITH CLEATS Oval hawse pipe with cleats spigot is inserted into finish ring for smooth radius, and can be trimmed to accommodate bulwark thickness. Finish ring is tapped 1/4"-20 for thru bolting. Includes 1/4" flat-head bolts. Finished in Polished Cast Bronze, Polished Cast Chrome (over Bronze) and Polished Cast Stainless Steel. Fasteners included.

US$159.95 - $194.95 EACH
Opening Dimensions: 4-1/2" x 1-5/8" Flange Dimensions: 6-1/2" x 3-5/8" Cut Out: 4-3/4" x 1-7/8" Max. Bulwark Thickness: 3" Weight: 5 lbs. P/N: 210412 / 210477 ~ ALWAYS FREE SHIPPING OVER $100*
US$239.95 - $274.95 EACH
Opening Dimensions: 7-1/2" x 3" Flange Dimensions: 9-5/8" x 5-1/4" Cut Out: 7-3/4" x 3-1/4" Max. Bulwark Thickness: 3" Weight: 8.5 lbs. P/N: 210512 / 210513 ~ ALWAYS FREE SHIPPING OVER $100*
A&B Industries Bronze Round Hawse Pipe
A&B Industries (ABI)
ROUND HAWSE PIPE Round Hawse Inner and Outer Pipes with matched spigots can be trimmed to accommodate bulwark thickness. Hose (not included) can be fitted over spigots to provide watertight connection to accommodate a thicker bulwark. 1/4" mounting bolts required for installation are not included.

US$134.95 / SET (Inner & Outer Pipe) - POLISHED BRONZE
Opening Diameter: 2-7/8" Cutout Hole Size: 3-1/4" Flange O.D.: 4-3/4" Max. Bulwark Thickness: 3-1/4" Fastener Size: 1/4" Weight: 3.25 lbs. P/N: 210612 ~ ALWAYS FREE SHIPPING OVER $100*
