COMFORT ZONE BOAT MISTING SYSTEM FOR BIMINI,
DODGER, ARCH OR TOWER BY TAYLOR MADE PRODUCTS - The
Comfort Zone Boat Misting System cools temperatures up to 30 degrees instantly!
This system uses a one-of-a-kind booster pump that draws
only one amp, delivers 130 PSI and keeps a flow rate as
low as one gallon per hour depending on the number of
nozzles installed.
How the System Works - Misting is based on the theory of
Evaporative Cooling. The system forces water through specially
designed misting nozzles creating a fog of ultra fine water droplets with
an average size of 50 microns or less. The water droplets
are so small they instantly flash evaporate, reducing the
surrounding temperature by as much as 30 degrees in just
seconds. This cool refreshing air makes your boating
experience more enjoyable and can lengthen your stay on
the water during the hottest summer days!
Water Source Options - Use Taylor Made's direct connect
system to tap into the onboard water source. "Push to Connect"
T-connectors splice right into the boat's onboard water
lines. Find supply line from galley pump to sink/shower,
cut line, and use the Quick Connector fittings to
"T" into the red inlet line. A water container
(not included) can also be used. Taylor Made Products offers a
7-gallon hard plastic container or a 5-gallon folding
collapsible container. Both containers have attachments
that hook up directly to the red inlet lines.
Accessories available below. NOTE: Systems
can also draw water from most fresh water lakes.
Made in USA

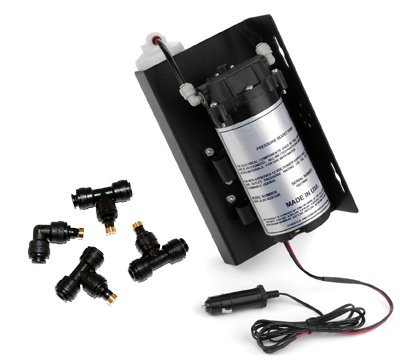

Basic Kit includes:
150 PSI Pressurizing Booster Pump with Black Anodized Mounting
Bracket
25' of 1/4" OD Black Polyethylene Misting Line
8' of 1/4" OD Red PE Inlet Line with screened, weighted
anchor attached (includes 1/2" threaded reducing connector)
Misting Nozzles with 1" Stems and Attachment Clips
Polypropylene Quick-Connect (push-in type) Fittings (T's, elbows)
Pre-Wired 12V Plug (can wire direct to boat's 12V system)
10" Inline Sediment Filter with Mounting Bracket
|
Comfort Zone Boat Misting System
