A&B Industries 3" Stove Pipe Deck Fitting
A&B Industries (ABI)

3" STOVE PIPE DECK FITTING Finned design insulates deck from hot stove or heater exhaust gases. 3" stove pipe slides into tapered bottom of adapter. Lower finishing ring is tapped for through bolts and trims cutout inside cabin. Cover has "O" ring seal. (Stove pipe not included). Includes finish ring, cover and key. Finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$199.95 - $209.95 / KIT
Flange O.D.: 7" Overall Height: 2-7/8" Cutout Hole Size: 5-7/16" Weight: 6.0 lbs. P/N: 120242 / 120243 ~ ALWAYS FREE SHIPPING OVER $100*

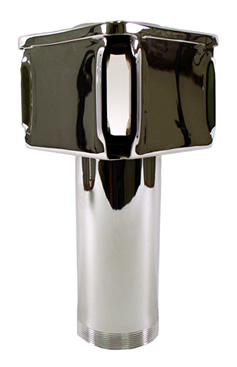

A&B Industries 3" Chrome (over Brass) Charlie Noble Stove Pipe
Click for larger image

A&B Industries (ABI)

3 INCH CHARLIE NOBLE STOVE PIPE Use as a smoke head or exhaust vent. Threads into Stove Pipe Deck Fitting (sold separately, see above). 14 threads per inch. Charlie Noble Stove Pipe is finished in Polished Chrome (over Brass) Only. The Stove Pipe Extension is finished in Polished Brass Only.

US$189.95 / EACH - POLISHED CHROME ONLY
Height: 11" Base Diameter: 3" Top Square: 5-1/8" Weight: 3.5 lbs. P/N: 120011 ~ ALWAYS FREE SHIPPING OVER $100*
US$38.95 / EACH - POLISHED BRASS ONLY
Stove Pipe Extension - Length: 3" Fits Stove Pipe: 3" Fits Deck Plate Size: 3" Weight: 0.50 lbs. P/N: 120210

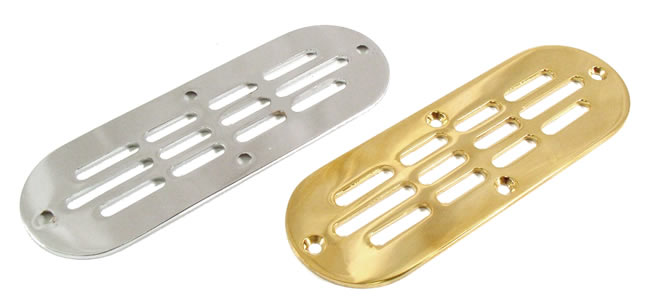

A&B Industries Locker Vents
Click for larger image

A&B Industries (ABI)

LOCKER VENT Perfectly sized to finish off the cutout for a locker or drawer. The highly polished finish will complement any interior. Requires four (4) #10 fasteners (not included). Finished in Polished Brass and Polished Chrome (over Brass).

US$14.95 / EACH
Length : 6-1/16" Width: 2-1/16" Cut-Out L x W: 4-7/8" x 1" Weight: 0.32 lbs. P/N: 113012 / 113013
A&B Industries Stainless Steel Butterfly Vent
A&B Industries (ABI)

BUTTERFLY VENT STAMPED #304 STAINLESS STEEL These round vents are ideal for lockers and cabinets. The twist knob on the top allows the vent opening to be adjusted from fully closed to fully open. Available in two sizes which are both 3/4" high. Each is pre-drilled for installation, which uses four, #6 round head screws (not included).

US$7.95 / EACH - STAINLESS STEEL
Outer Diameter: 4" Inner Diameter: 3-1/8" Weight: 0.16 lbs. P/N: 113577
A&B Industries Stainless Steel Mini Clam Shell Vent
A&B Industries (ABI)

MINI CLAM SHELL VENT These small vents are perfect for covering vent holes for battery boxes, water or fuel tanks, or for covering areas of small cables. They come in two sizes and are pre-drilled or installation, which requires three screws (not included).

US$2.95 / EACH - STAINLESS STEEL
Length: 1-5/8" Width: 1-3/4" Height: 1/2" Weight: 0.07 lbs. P/N: 113377
US$2.95 / EACH - STAINLESS STEEL
Length: 2-1/4" Width: 2-1/4" Height: 5/8 " Weight: 0.07 lbs. P/N: 113477


DECK PLATE 3", 4", 5" and 6" deck plates available. Each Deck Plate comes with an O-Ring seal to help insure water stays out. Pre-drilled for installation. Finished in Polished Stainless Steel and Polished Titan Tuff™ Gold (not available in 6"). Fasteners not included.

Titan Tuff™ Gold is a new PVD (Physical Vapor Deposition) processed stainless steel which has a rich bronze/gold appearance, is three (3) more times abrasion resistant than chrome, easier to clean than stainless steel, highly resistant to corrosion, stands up to any household cleaner and has a 20-year finish guarantee. SailboatStuff & Marine parts, hardware and supplies.

A&B Industries Deck Plate
A&B Industries (ABI)
US$39.95 - $49.95 / EACH
Deck Plate I.D.: 3" Deck Plate O.D.: 4-9/16" Cut Out Hole Size: 3-3/8" Fastener Size: #10 Fastener Holes: 4 Weight: 1.25 lbs. P/N: 110077 / 110062
US$43.95 - $54.95 / EACH
Deck Plate I.D.: 4" Deck Plate O.D.: 5-9/16" Cut Out Hole Size: 4-3/8" Fastener Size: #10 Fastener Holes: 4 Weight: 1.75 lbs. P/N: 110177 / 110162
US$74.95 - $78.95 / EACH
Deck Plate I.D.: 5" Deck Plate O.D.: 7-1/4" Cut Out Hole Size: 5-3/8" Fastener Size: #10 Fastener Holes: 4 Weight: 2.75 lbs. P/N: 110277 / 110262
US$142.95 - $149.95 / EACH
Deck Plate I.D.: 6" Deck Plate O.D.: 8-1/2" Cut Out Hole Size: 6-1/2" Overall Deck Plate Depth: 1-1/16" Deck Plate Cap Depth: 15/16" Fastener Size: #10 Fastener Holes: 6 Weight: 5 lbs. P/N: 110342 / 110377
A&B Industries Deck Plate
A&B Industries (ABI)
US$2.50 - $5.95 / EACH
Deck Plate Keys
US$1.95 - $3.95 / EACH
Replacement O-Rings for Deck Plate
A&B Industries Universal Deck Plate Key
A&B Industries (ABI)

UNIVERSAL DECK PLATE KEY Small pocket tool. Fits shackles, various deck fill sizes, 5/16" and 7/16" hose clamp nuts. Also has screwdriver, bottle opener and 2 holes for attaching lanyards.

US$4.95 / EACH - STAINLESS STEEL
Length: 3-7/8" Width: 2-3/8" Weight: 0.13 lbs. P/N: 501277
A&B Industries Heavy Duty Hinged Deck Plate Key
A&B Industries (ABI)

HEAVY DUTY HINGED DECK PLATE KEY Hinged key opens to 6". Has two sizes of stainless steel pins, 3/16" pins on one side and 5/16" on the other. Accommodates most caps. Handle drilled for lanyard. Finished in Bronze and Stainless Steel.

US$19.95 - $21.95 / EACH
Span Width: 6" Overall Length: 7-3/4" Weight: 0.69 lbs. P/N: 502312 / 502377
