Stainless Steel Round Portholes and Parts on this webpage (FREE SHIPPING OVER $100*):
Man Ship Stainless Steel Round Portholes
Man Ship Round Porthole Screens
Man Ship Round Porthole Replacement Gasket
Vetus Stainless Steel Round Portholes
Vetus Stainless Steel Screws for Portholes
Anchor-Style Porthole Chains
T-Bar Porthole Chains

Manship Stainless Steel Round Porthole (Portlight)
Click for larger image

Manship

Manship Stainless Steel Round Porthole (Portlight) Diagram

MAN SHIP POLISHED 316 STAINLESS STEEL ROUND PORTHOLES 316 Stainless Steel Manship Round Portholes are machine rolled with welded frames. All portholes include laminated safety glass, gasket, trim ring/backing plate, and insect screen. 1-1/2" STRAIGHT SPIGOT DEPTH is standard; all other depths are SPECIAL orders. To special order other spigots depths (e.g. 2", 2-1/2", 3", or 3-1/2") please call 1-770-776-9962 or email us. See below for Parts for Round Portholes

US$549.95 KIT includes Screen
Door Opening Diameter (A): 7" · Glass Thickness: 5/16" · Spigot O.D. Cutout size (C): 7-1/4" · Flange O.D. (E): 9-5/8" · Spigot Depth (G): 1-1/2 " Straight · Fastener Size: 1/4" · Stud Size: 3/8" · Weight: 13.5 lbs. · Part Number: LSR-07-15S/SN
US$624.95 KIT includes screen
Door Opening Diameter (A): 8" · Glass Thickness: 5/16" · Spigot O.D. Cutout size (C): 8-1/4" · Flange O.D. (E): 10-5/8" · Spigot Depth (G): 1-1/2 " Straight · Fastener Size: 1/4" · Stud Size: 3/8" · Weight: 13.5 lbs. · Part Number: LSR-08-15S/SN
US$779.95 KIT includes screen
Door Opening Diameter (A): 10" · Glass Thickness: 3/8" · Spigot O.D. Cutout size (C): 10-3/8" · Spigot Depth (G): 1-1/2" Straight · Flange O.D. (E): 12-7/8" · Fastener Size: 1/4" · Stud Size: 3/8" · Weight: 13.5 lbs. · Part Number: LSR-10-15S/SN
US$849.95 KIT includes screen
Door Opening Diameter (A): 12" · Glass Thickness: 3/8" · Spigot O.D. Cutout size (C): 12-3/8" · Flange O.D. (E): 14-7/8" · Spigot Depth (G): 1-1/2 " Straight · Fastener Size: 1/4" · Stud Size: 3/8" · Weight: 25.0 lbs. · Part Number: LSR-12-15S/SN
US$1,039.95 KIT includes screen
Door Opening Diameter (A): 14" · Glass Thickness: 3/8" · Spigot O.D. Cutout size (C): 14-3/8" · Flange O.D. (E): 16-7/8" · Spigot Depth (G): 1-1/2 " Straight · Fastener Size: 1/4" · Stud Size: 3/8" · Weight: 28.0 lbs. · Part Number: LSR-14-15S/SN

MAN SHIP ROUND PORTHOLE SCREENS Replacement screens for Manship Polished 316 Stainless Steel Round Portholes (Portlights).

US$24.95 - $44.95 / EACH
Sizes: 7" to 14" Replacement Manship Round Porthole Screens · Part Number: LSR-07-SN (LSR07SN) / LSR-08-SN (LSR08SN) / LSR-10-SN (LSR10SN) / LSR-12-SN (LSR12SN) / LSR-14-SN (LSR14SN)
Man Ship Oval Porthole Replacement Gasket
Click for larger image

Marine Depot

MAN SHIP ROUND PORTHOLE REPLACEMENT GASKET Manship Round Portlight Replacement Gasket. Gaskets are made of water resistant, thermo-plastic neoprene material. Neoprene gaskets have excellent strength, durability, are abrasion resistance, gaskets resist hardening, and remain soft and pliable, holding up under both hot and cold extremes. Excellent strength and durability. UV and Salt Water, Weather resistant. Water and Air-Tight Seal when closed.

US$69.95 / EACH
Material: Neoprene · Length: 8 feet · Cross Section: 5/8" x 1/2" · Weight: 2.5 lbs. · Part Number: 7122-B
Ventura Round Recessed PowerLED Spot Lights by Imtra Marine Lighting
Click for larger image

Vetus

Ventura Round Recessed PowerLED Spot Light Diagram by Imtra Marine Lighting

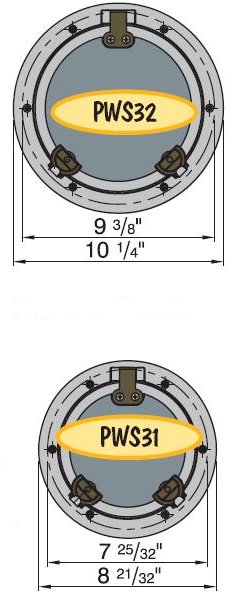

VETUS ROUND AISI 316 STAINLESS STEEL PORTHOLES Vetus PWS Round Stainless Steel Portholes are made of cast and polished 316 stainless steel frames with smoked 5/16" Acrylic Lens. All PWS portholes are supplied standard with an aluminum mosquito screen. Available in either CE classified AI or CE classified AII. Suitable for 1/8" to 45/64" panel thickness. Stainless Steel Screws listed below.

  • AI Type includes a Stainless Steel Trim Ring (Inner Frame)
  • AII Type has No Trim Ring (Inner Frame)
US$307.95 / EACH
Description: AII Type includes Mosquito Screen · Outer Diameter: 8-11/16" · Cut-Out Diameter: 7-13/16" · Lens: 5/16" Smoke Colored Acrylic Lens · Part Number: PWS31A2
US$344.95 / EACH
Description: AI Type includes Stainless Steel Trim Ring (Inner Frame) and Mosquito Screen · Outer Diameter: 8-11/16" · Cut-Out Diameter: 7-13/16" · Lens: 5/16" Smoke Colored Acrylic Lens · Part Number: PWS31A1
US$364.95 / EACH
Description: AII Type includes Mosquito Screen · Outer Diameter: 10-1/4" · Cut-Out Diameter: 9-3/8" · Lens: 5/16" Smoke Colored Acrylic Lens · Weight: 0.07 lbs. · Part Number: PWS32A2
US$417.95 / EACH
Description: AI Type includes Stainless Steel Trim Ring (Inner Frame) and Mosquito Screen · Outer Diameter: 10-1/4" · Cut-Out Diameter: 9-3/8" · Lens: 5/16" Smoke Colored Acrylic Lens · Weight: 0.07 lbs. · Part Number: PWS32A1
Ventura Round Recessed PowerLED Spot Lights by Imtra Marine Lighting
Click for larger image

Vetus

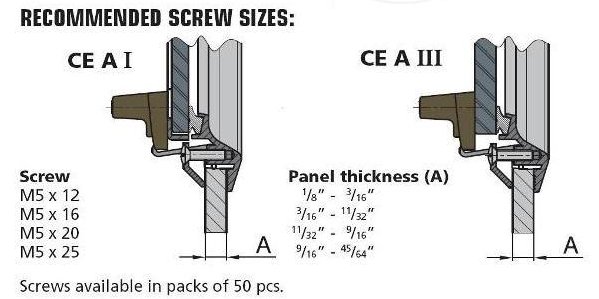

VETUS STAINLESS STEEL SCREWS FOR PORTHOLES Stainless Steel Vetus Porthole Screws with M5 diameter. Available in four (4) different lengths depending on panel thickness where porthole is installed.

US$24.50 - $41.95 / PACK OF 50
Material : Stainless Steel · Panel Thickness: 1/4" - 11/16" (3 - 18mm) · Driver: Slotted · Fastener Type: Machine Screws· Part Number: SET0092 / SET0093 / SET0094 / SET0095
SailboatStuff Brass and Chrome Anchor-Style Porthole Chain
Click for larger image

SailboatStuff

ANCHOR-STYLE PORTHOLE CHAINS Anchor-style Porthole Chains are finished in Polished Brass or Polished Chrome (over Brass). Secures with two (2) #6 fasteners (not included).

US$14.95 / EACH - BRASS ONLY
Style: Anchor · Length: 8" · Weight: 4 oz. · Part Number: 8131B
SailboatStuff Brass and Chrome T-Bar Porthole Chain
Click for larger image

SailboatStuff

T-BAR PORTHOLE CHAINS T-Bar Porthole Chains have machined groove to fit dog. Finished in Polished Brass or Polished Stainless Steel. Secures with two (2) #6 fasteners (not included).

US$13.95 / EACH
Style: T-Bar · Length: 8" · Weight: 0.13 lbs. · Part Number: 8130B / 8130S
