Latches & Catches on this webpage (FREE SHIPPING OVER $100*):
Barrel Bolts
Draw-Clamp Latch
Anti-Rattle Latch
Locking-Cam Latch
Cupboard Catch with Knob
Cabinet Catch
Elbow Catch
Nylon Elbow Catch
Anti-Rattle Sash Fastener

SailboatStuff Polished Brass & Chrome Barrel Bolt
Click for larger image

SailboatStuff

BARREL BOLTS Barrel Bolts that locks in open or closed position. Finished in precision cast Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$9.95 / EACH
Length: 2-29/32" · Base Width: 1-7/32" · Bolt Travel: 11/16" · Bolt Diameter: 1/4" · Fastener Size: 1/8" · Weight: 0.13 lbs. · Part Number: 370510 / 370511
US$11.95 / EACH
Length: 3-13/16" · Base Width: 1-1/8" · Bolt Travel: 7/8" · Bolt Diameter: 5/16" · Fastener Size: 1/8" · Weight: 0.19 lbs. · Part Number: 370610 / 370611
US$13.95 / EACH
Length: 4" · Base Width: 1-5/16" · Bolt Travel: 1" · Bolt Diameter: 3/8" · Fastener Size: 5/32" · Weight: 0.32 lbs. · Part Number: 370710 / 370711
US$15.95 / EACH
Length: 4-1/4" · Base Width: 1-5/16" · Bolt Travel: 1-1/4" · Bolt Diameter: 3/8" · Fastener Size: 5/32" · Weight: 0.32 lbs. · Part Number: 370810 / 370811
SailboatStuff Polished Brass Draw-Clamp Latch
Click for larger image

SailboatStuff

DRAW-CLAMP LATCH Center tensioning device ideal for hatches, doors, cabinets, or wherever a tensioning device is needed. Finished in Polished Brass. Fasteners not included.

US$29.95 / EACH
Length: 3" · Width: 1-3/8" · Fastener: #6 FH · Weight: 0.25 lbs. · Part Number: FS0085B
Sea-Dog Chrome Anti-Rattle Latch
Click for larger image

Sea-Dog
Sea-Dog Chrome Anti-Rattle Latch

ANTI-RATTLE LATCH BY SEA-DOG Sea-Dog's Anti-Rattle Latch features an open-mount, center-tensioning cam latch for a tight, no-rattle seal. Ideal for hatches, doors, cabinets, etc. Will accept a padlock with up to a 1/4" shank.
Anti-Rattle Latches are available in two versions: a 3-inch, Stanless Steel model or a 4-inch model finished in Polished Chrome (over Brass). Fasteners not included.

US$17.95 / EACH - CAST 316 STAINLESS STEEL
Closed Length (A): 3" · Height (B): 3/4" · Lock Hole Size (C): 1/4" · Width (D): 1-1/2" · Fastener Size: #10 FH · Weight: 0.20 lbs · Part Number: 221100
US$12.95 / EACH - CHROME-PLATED SAND-CAST BRASS
Closed Length (A): 4" · Height (B): 1-1/16" · Lock Hole Size (C): 1/4" · Width (D): 2" · Fastener Size: #10 FH · Weight: 0.30 lbs · Part Number: 222110
SailboatStuff Polished Brass
              Locking-Cam Latch - Open or Reverse Mount
Click for larger image

SailboatStuff

LOCKING-CAM LATCH (Reverse or Open Mount) Center tensioning latch tensions hatches, doors, cabinets, and other items for a tight, rattle-free seal. Will accept a padlock with up to a 5/16" shank. Locking-Cam Latches are finished in Polished Brass. Fasteners not included.

US$19.95 / EACH OPEN MOUNT
Length Closed: 4-7/8" · Open Length: 3-3/8" · Width: 1-7/16" · Lock Hole Size: 5/16" · Fastener Size: #10 · Weight: 0.4 lbs. · Part Number: CH4842
US$19.95 / EACH REVERSE MOUNT
Length Closed: 4-3/16" · Open Length: 2-3/4" · Width: 1-7/16" · Lock Hole Size: 5/16" · Fastener Size: #10 · Weight: 0.4 lbs. · Part Number: CH4843
SailboatStuff Brass Cupboard Catch with Knob
Click for larger image

SailboatStuff

CUPBOARD CATCH WITH KNOB Convenient knob with spring loaded catch. Features a stainless steel spring and long wearing parts. 3/8" offset mounting. Cupboard Catches with Knobs are finished in Polished Brass. Requires six (6) #4 fasteners (not included).

US$9.95 / EACH
Length: 1-1/2" · Width: 1-7/16" · Height: 1-13/16 " · Fasteners: #4 · Weight: 0.2 lbs. · Part Number: 352010
Cabinet Catch
Click for larger image

SailboatStuff

Cabinet Catch

CABINET CATCH Made from extruded brass with all stainless balls and springs. Cabinet Catches have screw-adjustable spring-loaded bearings to adjust the holding strength of each catch depending on the door size. Strike enters three ways, from the front or from either side. Marine-grade quality can be used for both interior and exterior applications. Available in either Brass or Chrome-plated finish. Fasteners not included.

US$2.95 / EACH
Length (A): 1-5/8" · Width (B): 5/16" · Base Height (C): 15/32" · Fastener Size: #4 FH · Weight: 0.05 lbs. · Part Number: 222841 / 222821
US$3.95 / EACH
Length (A): 1-15/16" · Width (B): 3/8" · Base Height (C): 7/16" · Fastener Size: #4 FH · Weight: 0.07 lbs. · Part Number: 222842 / 222822
US$5.95 / EACH
Length (A): 2-1/4" · Width (B): 7/16" · Base Height (C): 1/2" · Fastener Size: #6 FH · Weight: 0.13 lbs. · Part Number: 222843 / 222823
US$7.95 / EACH - BRASS ONLY
Length (A): 2-3/4" · Width (B): 13/16" · Base Height (C): 5/8" · Fastener Size: #10 · Weight: 0.19 lbs. · Part Number: 351810
SailboatStuff Polished Brass & Chrome Elbow Catch
Click for larger image

SailboatStuff

ELBOW CATCH Striker plate, with stainless steel spring, has an adjustable slot for attachment. Easily adjustable for final position. Elbow Catches are finished in Polished Brass and Polished Chrome (over Brass). Fasteners not included.

US$3.95 / EACH
Length: 5/8" · Width: 1-1/8" · Height: 1-5/32" · Catch Dimensions: 7/8" x 1/2" x 9/32" · Fastener Size: #5 · Weight: 0.07 lbs. · Part Number: 222335 / 222330
SailboatStuff Black Molded Nylon Elbow Catch
SailboatStuff

NYLON ELBOW CATCH Catch and striker plate included. Fasteners not included.

US$2.95 / EACH - BLACK MOLDED NYLON
Length: 5/8" · Width: 1-1/8" · Height: 1-5/32" · Catch Dimensions: 7/8" x 1/2" x 9/32" · Fastener Size: #5 · Weight: 0.04 lbs. · Part Number: 227030
SailboatStuff Chrome Plated Sand Cast Brass Anti-Rattle Sash Fastener
Click for larger image

SailboatStuff

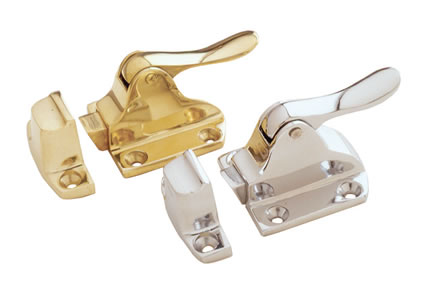

ANTI-RATTLE SASH FASTENER
Chrome plated sand cast brass construction. Fasteners not included.

US$6.95 / EACH
Shaft Length (A): 1-5/16" · Hole center to Cushion center (B): 7/8" · Hole center-to-center (C): 7/8" · Fastener Size: #6 FH· Weight: 0.2 lbs. · Part Number: 322210
