A&B Industries Polished Brass & Chrome Strap Hinge
Click for larger image
 SailboatStuff

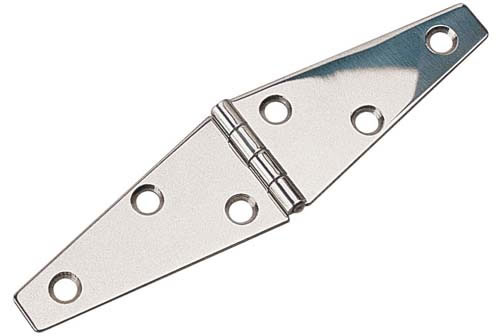

STRAP HINGE Very heavy gauge designed for higher load applications. Precision machined and polished to a mirror finish. Strap Hinge finished in Polished Brass and Polished Chrome (over Brass). Sold in pairs only. Fasteners not included.

US$14.95 - $16.95 / PAIR
Length Open: 4" Width Pin Plane: 1-1/8" Fastener Size: #8 Weight: 0.44 lbs. P/N: 310510 / 310511
US$22.95 - $26.95 / PAIR
Length Open: 6" Width Pin Plane: 1-5/16" Fastener Size: #10 Weight: 0.69 lbs. P/N: 310610 / 310611

T-HINGE Very heavy gauge. Precision machined and polished to a mirror finish. T-Hinge finished in Polished Brass and Polished Chrome (over Brass). Sold in pairs only. Fasteners not included.

US$16.95 / PAIR
Open Length (A): 4" Width (D): 2-3/8" Hinge Length (C): 2-1/2" Base Length (B): 1-1/2" Thickness (E): 1/8" Fastener Size: #8FH Weight: 0.22 lbs. P/N: 204706-1 / 204705-1
US$27.95 / PAIR
Open Length (A): 6" Width (D): 3-1/8" Hinge Length (C): 4-1/4" Base Length (B): 1-3/4" Thickness (E): 1/8" Fastener Size: #8FH Weight: 0.66 lbs. P/N: 204711-1 / 204710-1

KNUCKLE HINGE - LIFT-OFF Knuckle Lift-Off Hinge include bronze or stainless steel pin and brass or stainless steel pivot washer. Either right or left when opened. Finished in Polished Brass and Polished Chrome (over Brass). Sold in pairs only. Fasteners not included.

A&B Industries Brass & Chrome Knuckle Hinges
SailboatStuff

KNUCKLE HINGE / PAIR - LEFT DIRECTION

US$9.95 / PAIR - CHROME ONLY
Open Width: 1-3/8" Pin Plane Length: 1-1/16" Overall Length: 1-1/8" Fastener Holes: 2 Fastener Size: #5 Weight: 0.13 lbs. P/N: 301411
US$9.95 / PAIR
Open Width: 1-7/16" Pin Plane Length: 1-7/32" Fastener Holes: 3 Fastener Size: #6 Weight: 0.13 lbs. P/N: 301710 / 301711
US$15.95 / PAIR
Open Width: 2-1/16" Pin Plane Length: 1-7/16" Overall Length: 2-3/4" Fastener Holes: 3 Fastener Size: #8 Weight: 032 lbs. P/N: 302010 / 302011
A&B Industries Brass & Chrome Knuckle Hinges
SailboatStuff

KNUCKLE HINGE / PAIR - RIGHT DIRECTION

US$8.95 / PAIR - CHROME ONLY
Open Width: 1-3/8" Pin Plane Length: 1-1/16" Overall Length: 1-1/8" Fastener Holes: 2 Fastener Size: #5 Weight: 0.13 lbs. P/N: 301311
US$9.95 / PAIR
Open Width: 1-7/16" Pin Plane Length: 1-7/32" Overall Length: 2" Fastener Holes: 3 Fastener Size: #6 Weight: 0.13 lbs. P/N: 301610 / 301611
US$15.95 / PAIR
Open Width: 2-1/16" Pin Plane Length: 1-7/16" Overall Length: 2-3/4" Fastener Holes: 3 Fastener Size: #8 Weight: 0.32 lbs. P/N: 301910 / 301911
