Fixed Portholes and Deck Prisms on this webpage (FREE SHIPPING OVER $100*):
Man Ship 316 Stainless Steel Round Fixed Porthole (Deadlight)
Polished Chrome (Over Bronze) Round Fixed Porthole (Deadlight)
Rectangular Solid Glass Deck Prism

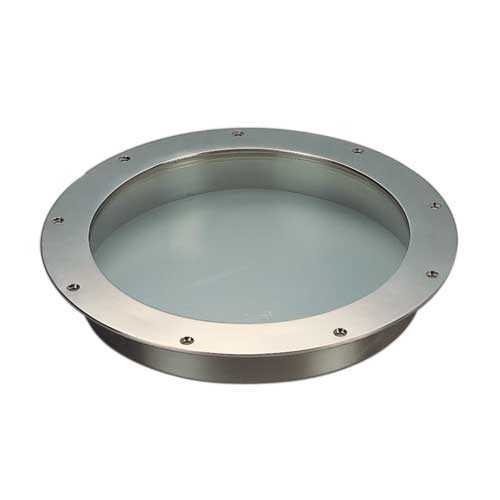

Man Ship 316 Stainless Steel  Fixed Porthole Flush Flange
Flush Flange

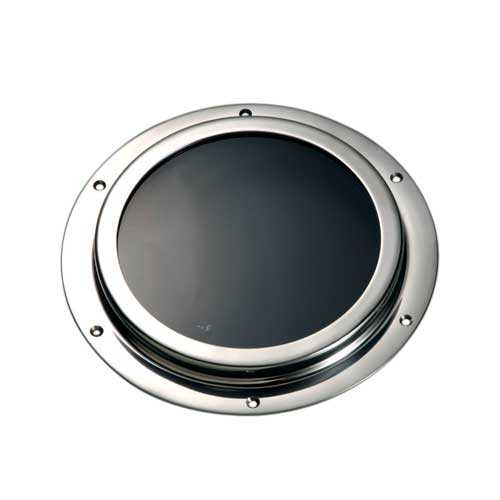

Man Ship 316 Stainless Steel  Fixed Porthole Raised Flange
Raised Flange

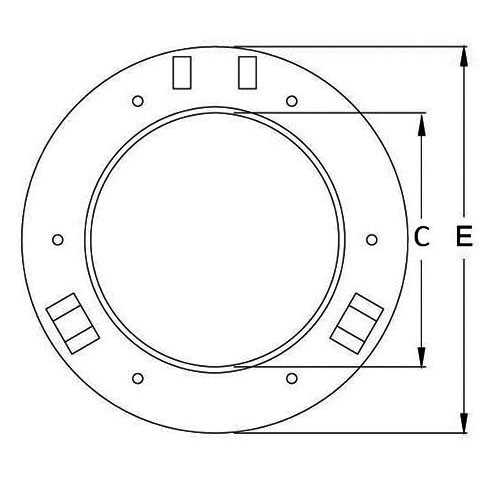

Man Ship 316 Stainless Steel  Fixed Porthole Diagram

Man Ship 316 Stainless Steel  Fixed Porthole Diagram

Man Ship 316 Stainless Steel  Fixed Raised Porthole Diagram

MAN SHIP 316 STAINLESS STEEL ROUND FIXED PORTHOLE (DEAD LIGHT) The Manship 316 Stainless Steel Round Fixed Porthole is machine rolled and formed frame for durability and strength. Hand polished to a brilliant mirror-like finish. Electro-polishing provides lasting protection against corrosion and rust. Straight Spigot Only. Fasteners not included.

  • Standard Spigot Lengths: 1-1/4"
  • For Custom Spigots Lengths of 2", 2-1/2", 3", 3-1/2" Please Email SailboatStuff with Spigot Length and Glass Tint. Price increases per each 1/2" spigot length.
  • Glass Thickness 1/4"- 3/8"
  • Tinted Tempered Safety Glass Available in Clear, Smoke, Light Grey, Blue, Tan, Green and Privacy Frost. See glass tint examples on left side of webpage.
  • Model AFLSR – Flush Flange; Glass is Flush with Flange (see image on left side of webpage)
  • Model BFLSR – Raised Flange; Glass is Raised above Flange (see image on left side of webpage)

  • US$249.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 5-1/4" · Flange O.D. (E): 7-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 5-1/4" (133 mm) · Glass Thickness: 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 8.8 lbs. · Part Number: AFLSR-0500-15
    US$279.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 5-1/4" · Flange O.D. (E): 7-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 5-1/4" (133 mm) · Glass Thickness: 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 8.8 lbs. · Part Number: BFLSR-0500-15
    US$309.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 6-1/4" · Flange O.D. (E): 8-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 6-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 10.0 lbs. · Part Number: AFLSR-0600-15
    US$339.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 6-1/4" · Flange O.D. (E): 8-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 6-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 11.0 lbs. · Part Number: BFLSR-0600-15
    US$359.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 7-1/4" · Flange O.D. (E): 9-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 7-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 12.0 lbs. · Part Number: AFLSR-0700-15
    US$389.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 7-1/4" · Flange O.D. (E): 9-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 7-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 12.0 lbs. · Part Number: BFLSR-0700-15
    US$409.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 8-1/4" · Flange O.D. (E): 10-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 8-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 14.3 lbs. · Part Number: AFLSR-0800-15
    US$459.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 8-1/4" · Flange O.D. (E): 10-5/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 8-1/4" · Glass Thickness : 1/4" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 12.0 lbs. · Part Number: BFLSR-0800-15
    US$689.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 10-5/16" · Flange O.D. (E): 12-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 10-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 14.3 lbs. · Part Number: AFLSR-1000-15
    US$759.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 10-5/16" · Flange O.D. (E): 12-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 10-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 14.3 lbs. · Part Number: BFLSR-1000-15
    US$769.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 12-5/16" · Flange O.D. (E): 14-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 12-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 18.0 lbs. · Part Number: AFLSR-1200-15
    US$859.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 12-5/16" · Flange O.D. (E): 14-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 12-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 18.0 lbs. · Part Number: BFLSR-1200-15
    US$959.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Flush Flange · Glass Diameter (C): 14-5/16" · Flange O.D. (E): 14-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 14-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 23.0 lbs. · Part Number: AFLSR-1400-15
    US$1,059.95 / EACH FREE SHIPPING OVER $100*
    Mount Type: Raised Flange · Glass Diameter (C): 14-5/16" · Flange O.D. (E): 14-7/8 · Spigot Length (G): 1-1/4" · Cut Out Hole Size: 14-5/16" · Glass Thickness : 3/8" · Glass Tints: Clear, Smoke, Light Grey, Blue, Tan, Green, Privacy Frost · Weight: 23.0 lbs. · Part Number: BFLSR-1400-15

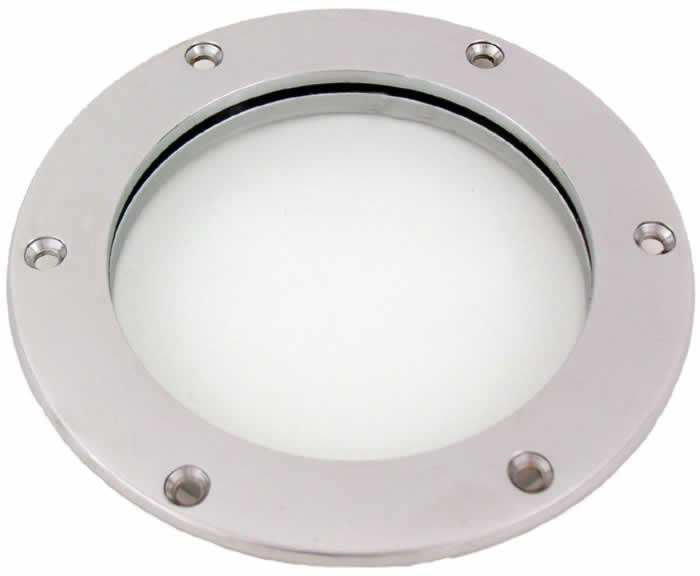

    SailboatStuff Chrome (over Bronze) Fixed Porthole or Deadlight
    Click for larger image

    SailboatStuff

    POLISHED CHROME (OVER BRONZE) ROUND FIXED PORTHOLE (DEAD LIGHT) Deadlight has a mirror-like finish. Removable locking ring for easy glass replacement. Designed with heavy duty laminated safety glass. Optional Finish Ring for the reverse side is available for some of the sizes. Finished in Polished Chrome (over Bronze). Fasteners not included.

    US$169.95 / EACH FREE SHIPPING OVER $100*
    Glass Diameter: 5" · Glass Thickness: 13/32" · Spigot O.D. (Cut-Out Size): 5-9/16" · Spigot Depth: 3/4" · Flange O.D.: 6-3/4" · Screw Size: 9/16" · Weight: 3.3 lbs. · Part Number: 1194BC
    US$829.95 / EACH FREE SHIPPING OVER $100*
    Glass Diameter: 10" · Glass Thickness: 7/16" · Spigot O.D. (Cut-Out Size): 11" · Spigot Depth: 1-1/2" · Flange O.D.: 13-3/4" · Screw Size: 5/8" · Weight: 12.0 lbs. · Part Number: 1178BC
    US$44.95 - $100.95 EACH
    Rinish Ring for Chrome Fixed Portholes · Part Number: 1193BC / 1195BC / 1197BC / 1199BC
    US$39.95 - $69.95 EACH
    Replacement Laminated Safety Glass for Chrome & Bronze Fixed Portholes · Part Number: 140019 / 140119 / 140219 / 140319 / 140419
    Davey & Company Rectangular Solid Glass Deck Prism
    Click for larger image

    Davey & Co.

    RECTANGULAR SOLID GLASS DECK PRISMS BY DAVEY & COMPANY From the early 1900s, Davey & Company has been producing a range of Deck Prisms to bring natural light down below to illuminate even the darkest of cabins. Manufactured in England these deck prisms are solid glass with either flat frames, where the glass is rabetted in, or deep frames for thinner decks. In both cases a marine quality black mastic should be used such as a polysulphide or synthetic rubber and to improve adhesion the glass should be abraded first where the sealant touches. Finished in Gun Metal Bronze, Chrome Plated or Stainless Steel frames. Fasteners not included.

    Prisms are available in three (3) sizes, with two (2) styles of frames. Deep Frame, suitable for thinner decks, or Flat Frame, for when the glass is rabetted into a thicker deck first. Kit includes solid glass prism and frame.

    Deep Frame Deck Prisms by Davey & Co.
    Click for larger image

    Davey & Co.

    Deep Frame Deck Prisms Diagram by Davey & Co.
    DEEP FRAME DECK PRISM KITS The style of this prism is ideal for thinner decks such as steel, aluminum or fiberglass. The frame is fixed to the deck first and the glass is then set into the frame from the top using a good quality marine mastic.

    US$214.95 - $239.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 9" x 3" · Frame Size: 11" x 5" · Depth: 2" · Material: Polished Gunmetal Bronze or Chrome Plated · Weight: 5.25 lbs. · Part Number: 2414/GM/225 / 2414/CP/225
    US$299.95 - $329.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 10" x 3-1/2" · Frame Size: 12-1/4" x 5-3/4" · Depth: 2-1/4" · Material: Polished Gunmetal Bronze or Chrome Plated · Weight: 6.25 lbs. · Part Number: 2414/GM/250 / 2414/CP/250
    US$339.95 - $379.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 12" x 4" · Frame Size: 14-1/2" x 6-1/2" · Depth: 2-1/2" · Material: Polished Gunmetal Bronze or Chrome Plated · Weight: 7.25 lbs. · Part Number: 2414/GM/300 / 2414/CP/300
    US$69.95 - $129.95 EACH
    Replacement Glass Prisms for Deep Frame Deck Prism Kit · Part Number: 2410/OO/225/075 / 2410/OO/250/087 / 2410/OO/300/100
    Flat Frame/Rabbetted Deck Prism by Davey & cO.
    Click for larger image

    Davey & Co.

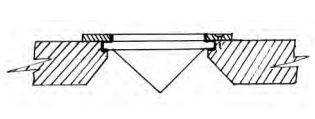

    Flat Frame/Rabbetted Deck Prism Diagram by Davey & Co.
    FLAT FRAME/RABETTED DECK PRISM KITS In this style, the glass is set first into the deck using a marine quality mastic and then a flat frame is positioned over the rim of the glass and screwed down. This is only suitable where there is sufficient depth of wood to support the weight of anyone walking on it.

    US$194.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 9" x 3" · Frame Size: 10-1/2" x 4-7/8" · Depth: 2-1/4" · Material: Polished Gunmetal Bronze or Stainless Steel · Weight: 5.25 lbs. · Part Number: 2411/GM/225 / 2411/SS/225
    US$239.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 10" x 3-1/2" · Frame Size: 11-3/8" x 5-3/8" · Depth: 2-1/4" · Material: Polished Gunmetal Bronze or Stainless Steel · Weight: 6.25 lbs. · Part Number: 2411/GM/250 / 2411/SS/250
    US$369.95 / EACH FREE SHIPPING OVER $100*
    Glass Size: 12-1/2" x 4-1/2" · Frame Size: 14-1/2" x 6-1/2" · Depth: 2-1/2" · Material: Polished Gunmetal Bronze or Stainless Steel · Weight: 7.25 lbs. · Part Number: 2411/GM/312 / 2411/SS/312
    US$79.95 - $169.95 EACH
    Replacement Glass Prisms for Flat Frame Deck Prism Kit Part Number: 2409/OO/225/075 / 2409/OO/250/087 / 2409/OO/312/112
