ABI Round Portholes and Parts on this webpage (FREE SHIPPING OVER $100*):
ABI Bronze Round Portholes (Portlights)
Replacement Parts for Bronze Round Portholes
Replacement Bronze Porthole Dogs & Studs
Anchor-Style Porthole Chains
T-Bar Porthole Chains

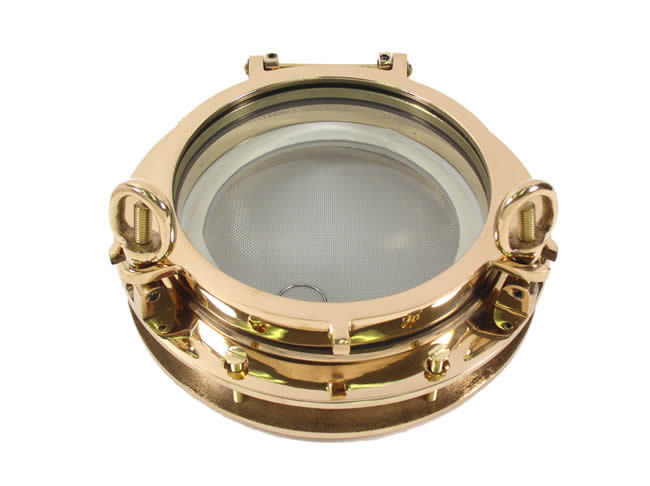

SailboatStuff Bronze Round Porthole
Click for larger image

SailboatStuff

HIGHLY POLISHED ABI BRONZE ROUND PORTHOLE (PORTLIGHTS) Portholes includes corresponding threaded flat head bolts. Hinges contain adjusting screws for gasket compression. All portholes have laminated safety glass, gasket, finish ring and insect screen. See below for Replacement Parts for Round Portholes.

US$374.95 / KIT
Material: Bronze · Opening Diameter: 4" · Glass Thickness: 1/4" · Spigot O.D. (cutout size): 4-5/16" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-1/4" · Flange O.D.: 7" · Fastener Size: 1/4" · Weight: 8.5 lbs. · Part Number: 1180B/81B (131012)
US$479.95 / KIT
Material: Bronze · Opening Diameter: 6" · Glass Thickness: 3/8" · Spigot O.D. (cutout size): 6-1/4" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-1/4" · Flange O.D.: 9" · Fastener Size: 1/4" · Weight: 11.5 lbs. · Part Number: 1182B/83B (131112)
US$574.95 / KIT
Material: Bronze · Opening Diameter: 7" · Glass Thickness: 3/8" · Spigot O.D. (cutout size): 7-3/8" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-1/4" · Flange O.D.: 9-5/8" · Fastener Size: 1/4" · Weight: 13.5 lbs. · Part Number: 1188B/89B (131212)
US$609.95 / KIT
Material: Bronze · Opening Diameter: 8" · Glass Thickness: 3/8" · Spigot O.D. (cutout size): 8-3/8" · Spigot Depth: 1-1/2" · Cabin Thickness: 1-1/4" · Flange O.D.: 11-1/4" · Fastener Size: 1/4" · Weight: 17.5 lbs. · Part Number: 1184B/85B (131312)
US$999.95 / KIT
Material: Bronze · Opening Diameter: 10" · Glass Thickness: 3/8" · Spigot O.D. (cutout size): 10-3/8" · Spigot Depth: 1-7/8" · Cabin Thickness: 1-5/8" · Flange O.D.: 13-3/4" · Fastener Size: 5/16" · Weight: 26.5 lbs. · Part Number: 1190B/91B (131412)
US$1,349.95 / KIT
Material: Bronze · Opening Diameter: 12" · Glass Thickness: 1/2" · Spigot O.D. (cutout size): 12-1/4" · Spigot Depth: 2-3/8" · Cabin Thickness: 2-1/8" · Flange O.D.: 15-1/4" · Fastener Size: 5/16" · Weight: 32.5 lbs. · Part Number: 1186B/87B

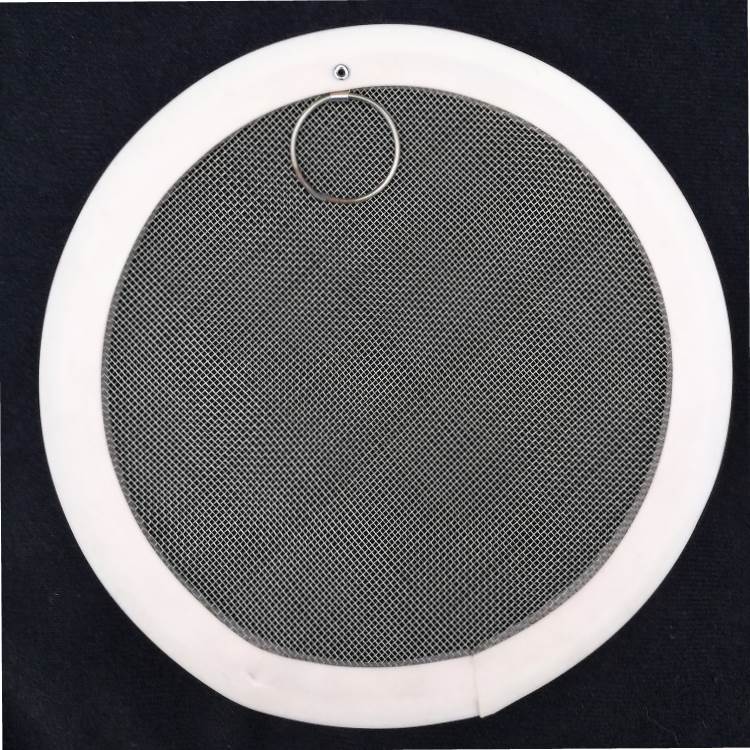

SailboatStuff Replacement Screen
Click for larger image

SailboatStuff
Replacement Screen

REPLACEMENT PARTS FOR ROUND BRONZE AND STAINLESS STEEL PORTHOLES

US$39.95 - $64.95 / EACH
Replacement Laminated Safety Glass for Round Bronze & Stainless Steel Portholes · Part Number: 131019 / 131119 / 131219 / 131319 / 131419
US$33.95 - $98.95 / EACH - NOTE: LIMITED AVAILABILITY
Replacement Screen for Round Bronze & Stainless Steel Portholes · Part Number: 133209 / 133409
US$9.95 - $24.95 / EACH - NOTE: LIMITED AVAILABILITY
Replacement Gasket for Round Bronze & Stainless Steel Portholes · Part Number: 131021 / 131121 / 131321 / 131421
SailboatStuff Spare Porthole Dog & Stud
SailboatStuff

SPARE PORTHOLE DOGS & STUDS
Spare Dogs and Studs for all Polished Bronze portholes.

US$24.95 / EACH
3/8 " DOG for Bronze 4", 6", 7" and 8" Round Portholes · Material: Bronze · Part Number: 1182B-DOG
US$10.95 / EACH
3/8 " STUD for Bronze 4", 6", 7" and 8" Round Portholes Length: 1-13/16" · Material: Bronze · Part Number: 1182B-STUD

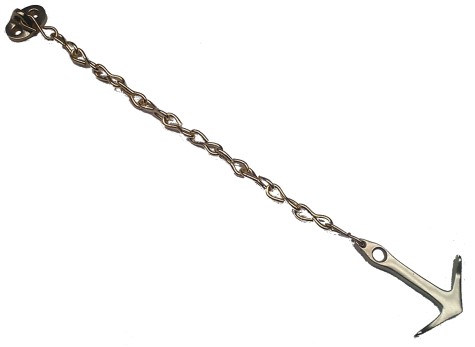

SailboatStuff Brass Anchor-Style Porthole Chain
Click for larger image

SailboatStuff

ANCHOR-STYLE PORTHOLE CHAINS Anchor-style Porthole Chains are available in Polished Brass ONLY. Secures with two (2) #6 fasteners (not included).

US$14.95 / EACH - BRASS ONLY
Style: Anchor · Length: 8" · Weight: 4 oz. · Part Number: 8131B
SailboatStuff Brass & Chrome T-Bar Porthole Chain
Click for larger image

SailboatStuff

T-BAR PORTHOLE CHAIN T-Bar Porthole Chains are available in Polished Brass or Polished Stainless Steel. Secures with two (2) #6 fasteners (not included).

US$13.95 / EACH
Style: T-Bar · Length: 8" · Weight: 2 oz. · Part Number: 8130B / 8130S
